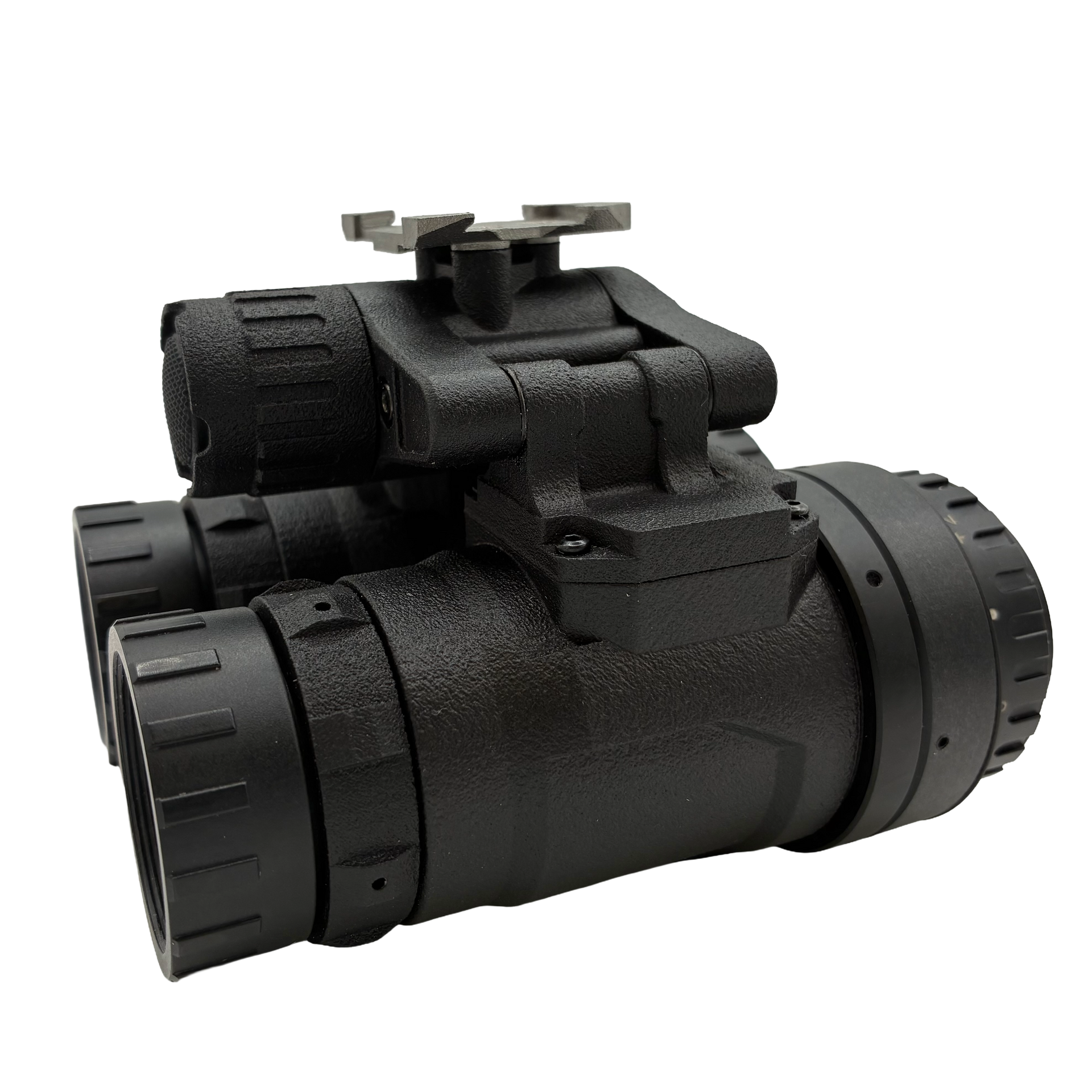

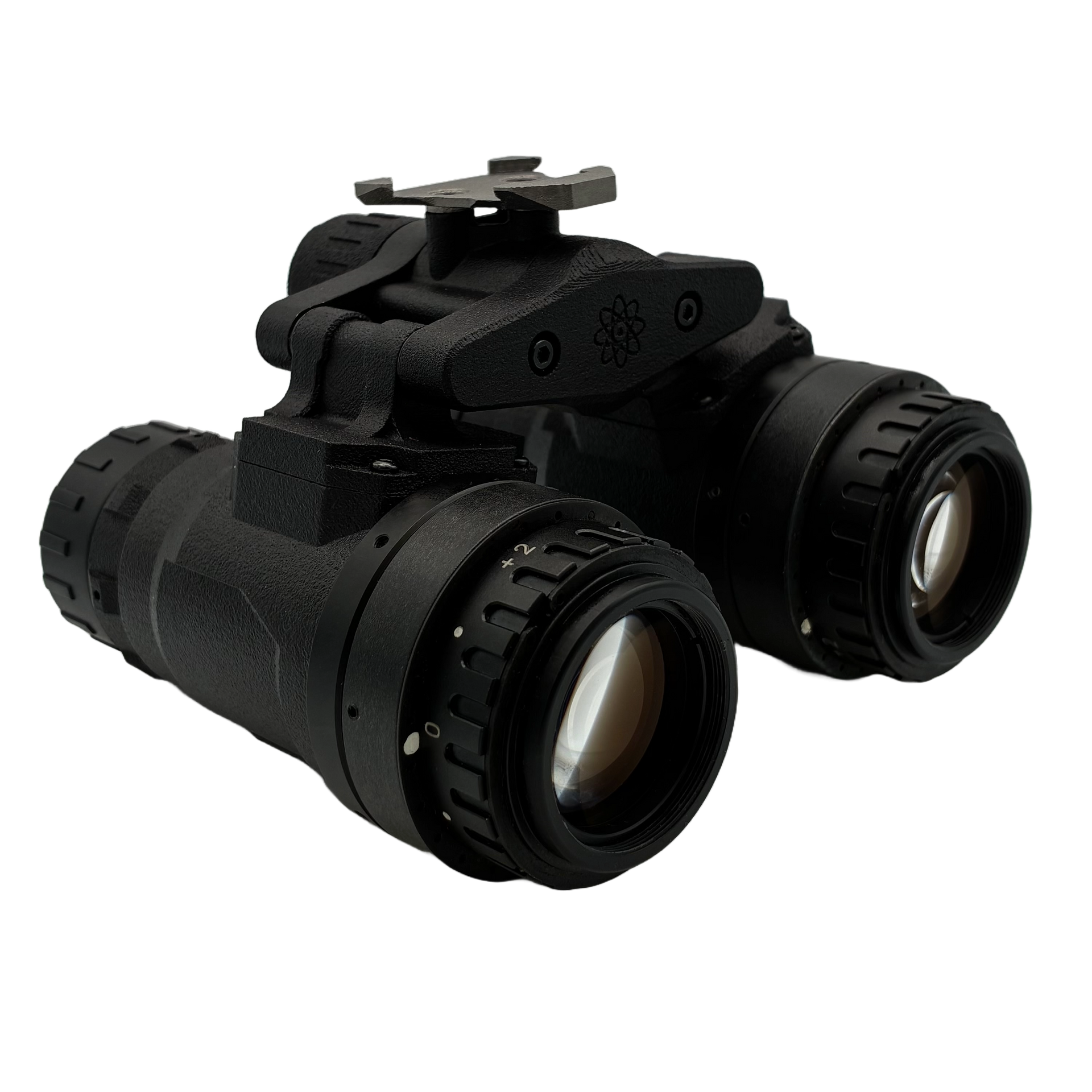

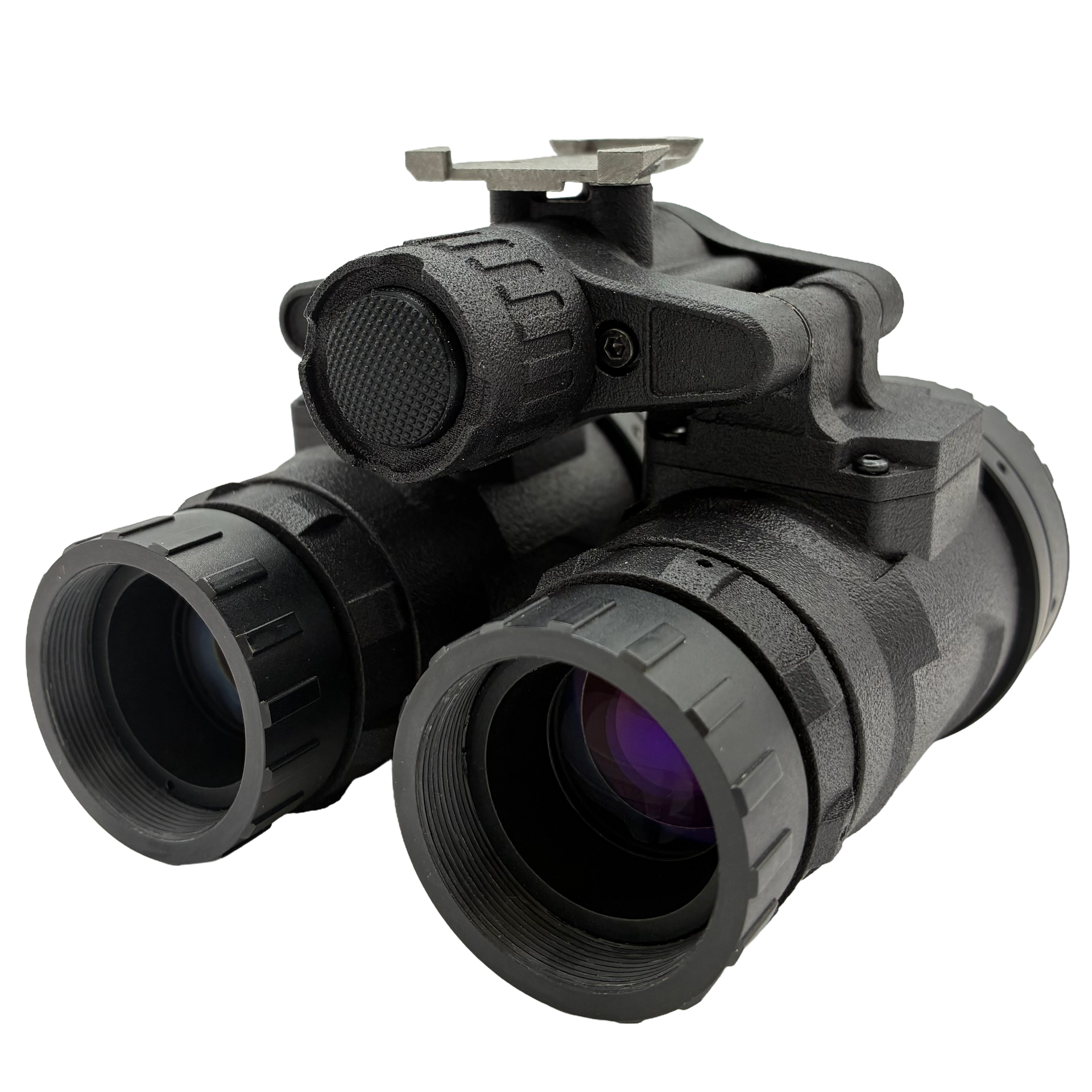

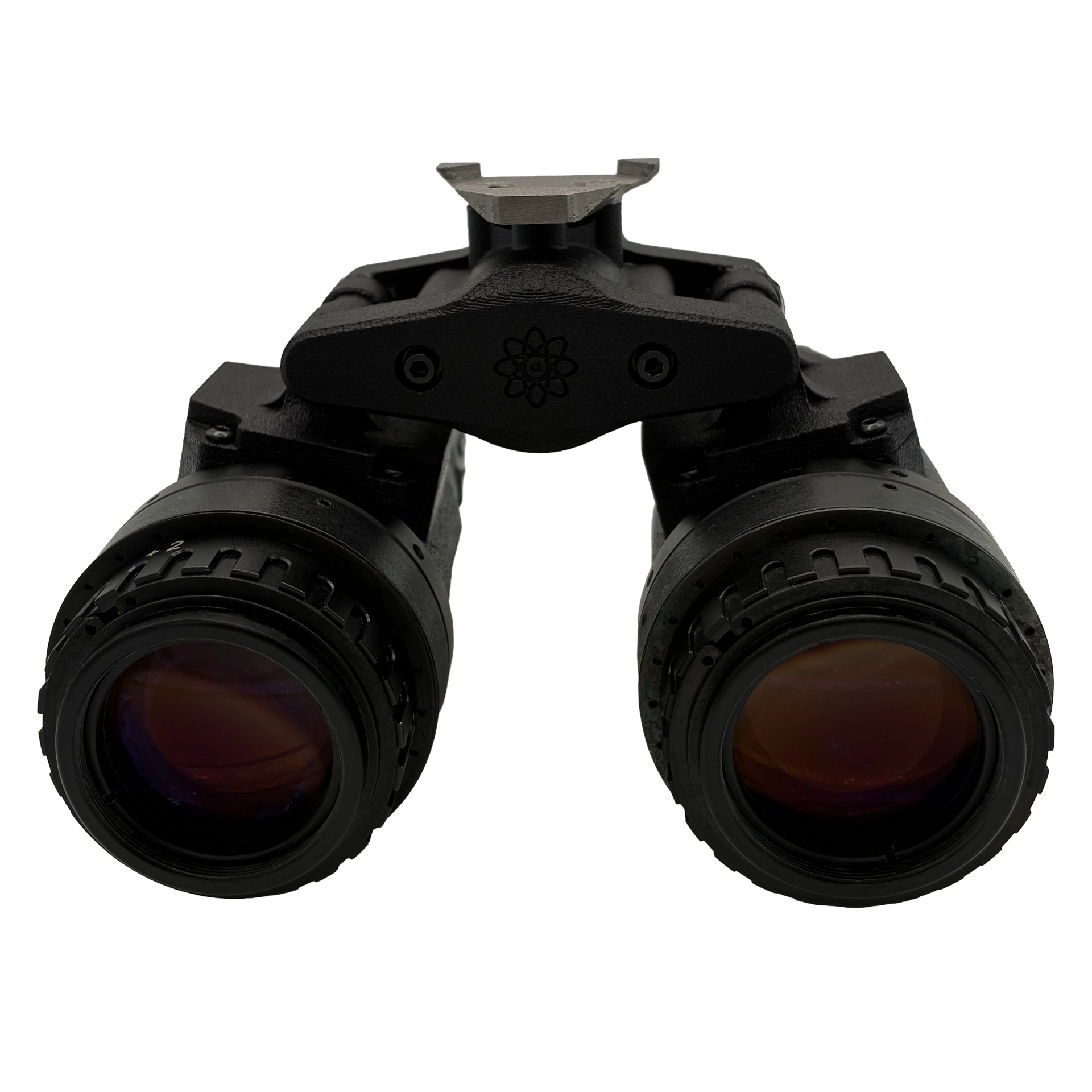

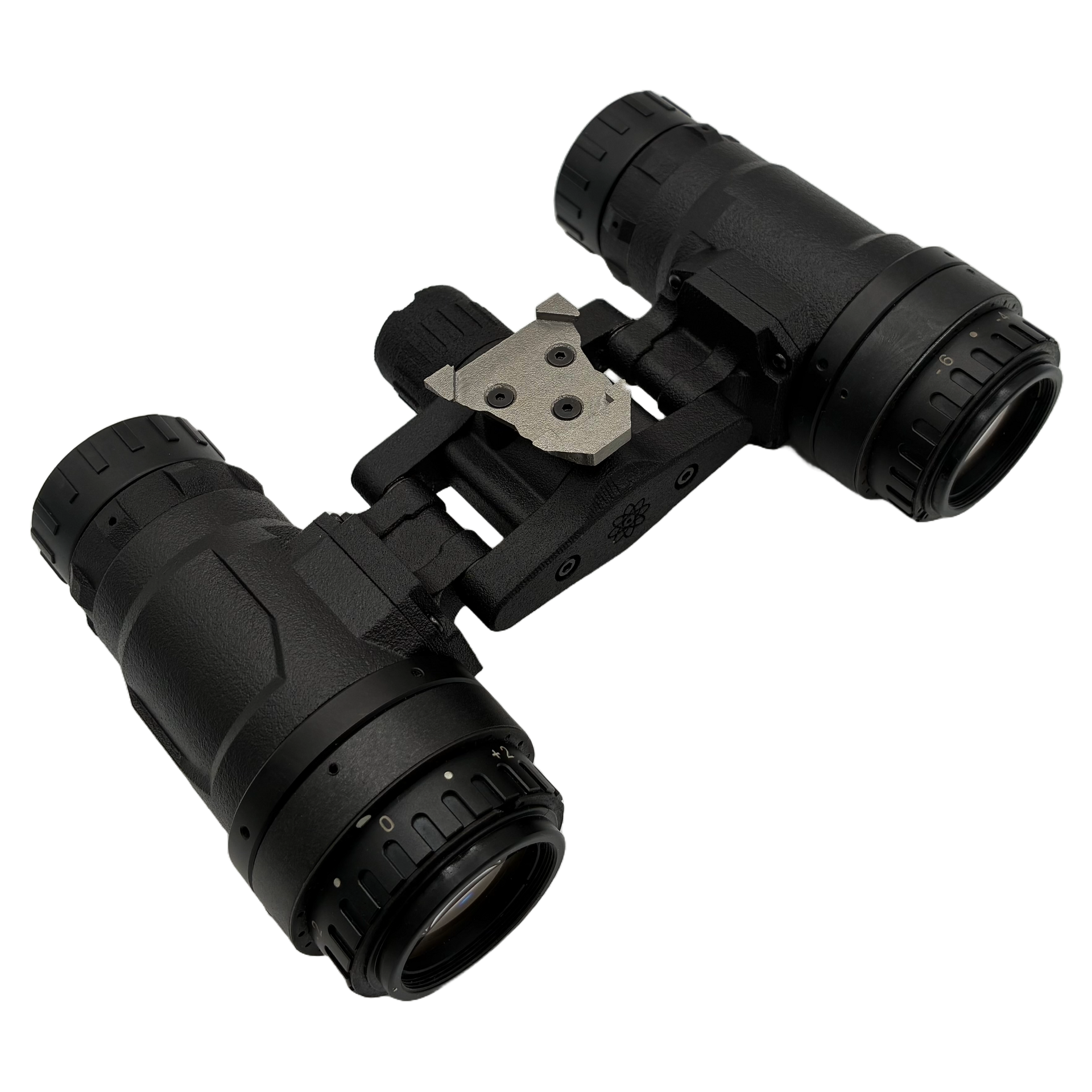

ATOM
Night Vision Goggle
The ATOM is a compact and lightweight analog night vision device designed for every mission. Built from durable PA12 Nylon using MJF 3D printing technology, it combines reliable performance with a simple, robust and cost-efficient design.
Key Features:
- Lightweight and compact design for extended use
- Intuitive operation for fast and straightforward deployment
- Simple mounting concept for quick installation
- Automatic shut-off function to preserve battery life
- Durable PA12 Nylon housing
- Additively manufactured titanium TC4 shoe-mount
- Designed for scalable and decentralized manufacturing
Lightweight. Reliable. Ready.
Designed for intuitive operation and easy mounting,
ATOM enables fast deployment with minimal training. Its additive-manufactured design supports scalable and decentralized production and assembly close to the point of need.
Coming 2027
Specifications:
OPTICS
- Magnification: 1x
- Field of View (FOV): 40° (± 2°)
- Objective Lens (focus range): 15 cm to Infinity
- Effective Focal Length (EFL): 27 mm (± 0.50 mm)
- Interpupillary Adjustment: 51 mm to 72 mm
- Eye Piece Eye Relief: 32 mm
- Diopter Adjustment: +2 to -4
PHYSICAL CHARACTERISTICS
- Size: ~105mm L x ~109mm W x ~80mm H
- Objective Adjustment: Full Turn (360 degrees)
- Mounts: L4G24 Mount compatible
- Vertical Adjustment: Compatible with adjustment in helmet mount
- for MX10160 format
WARRANTY
- Housing & Tube System: 2 Years
BATTERY INFORMATION
- Compatible with CR123A and 16340 batteries
- 1,8-6V input voltage
STANDARD EQIPMENT
- ATOM nightvision goggle
- Hard-Case
- Eye Cups (2x)
- User Manual (Online)
*contact us for custom material requests.
