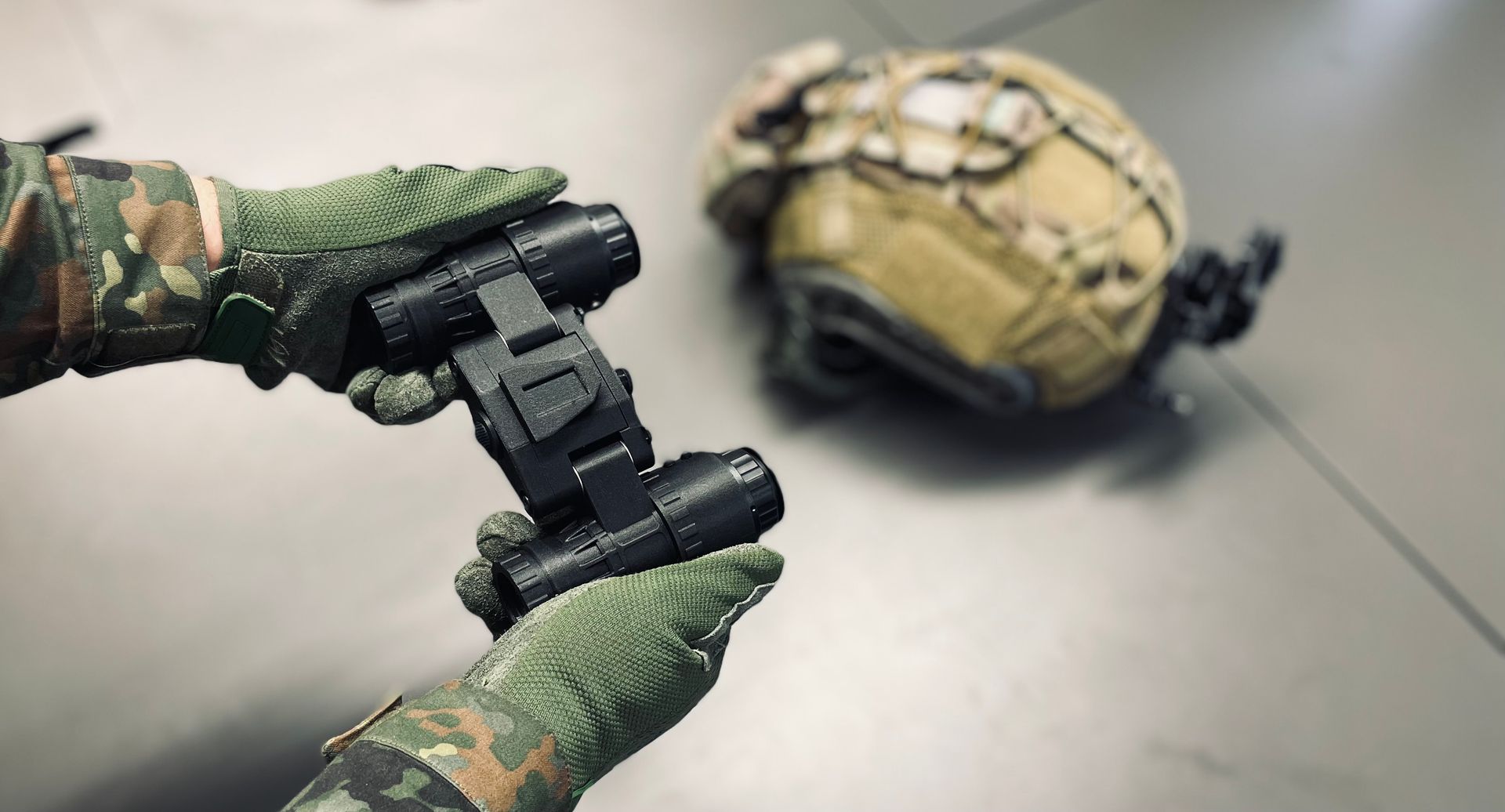

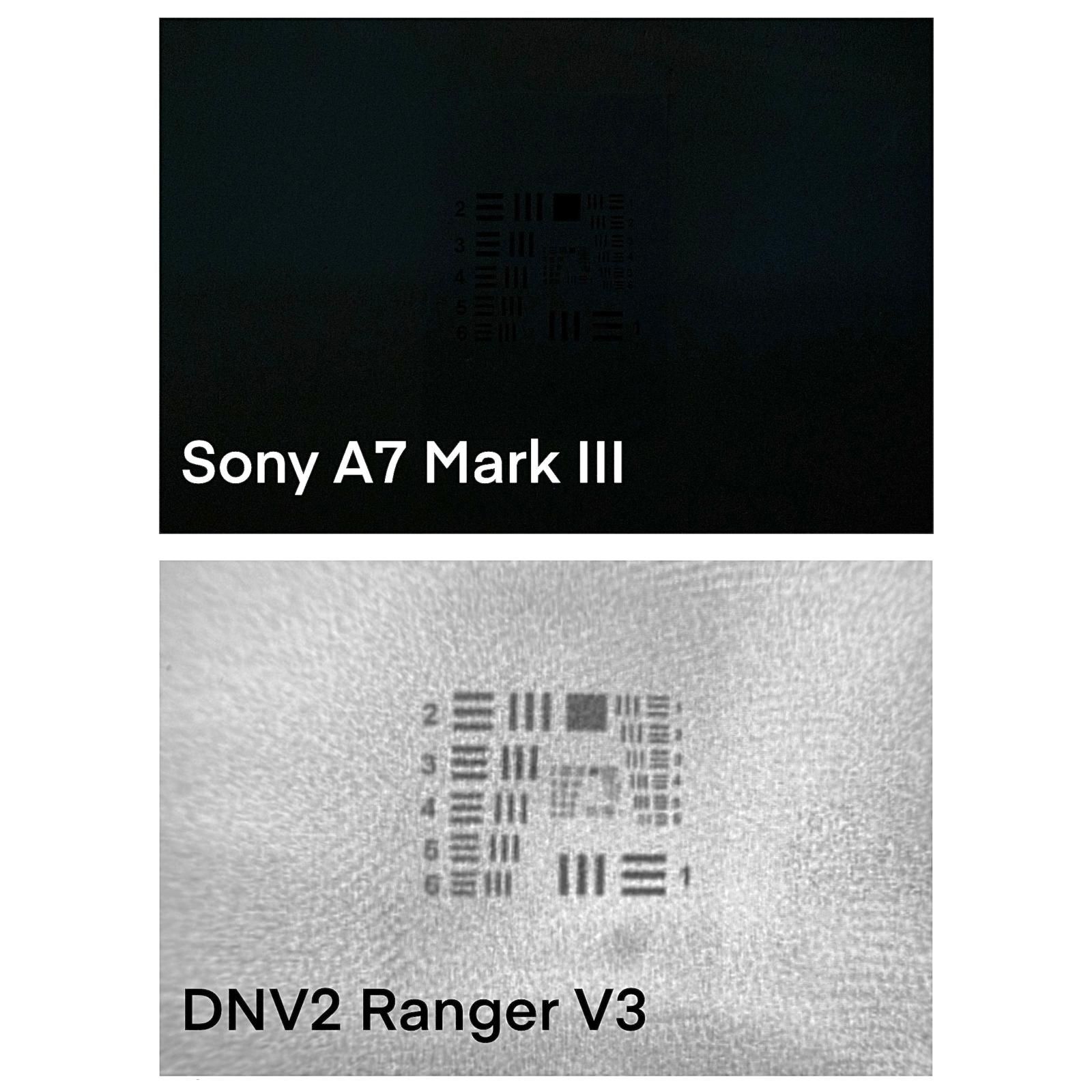

Capture what others miss.
Unparalleled visibility in near-total darkness using next-gen light-sensitive sensors.
See clearer. react faster.
Instant awareness with real-time output and nearly zero latency decision-making.
Engineerd based on customer feedback.
Shaped by missions, not by marketing. Every detail grounded in real-world feedback.

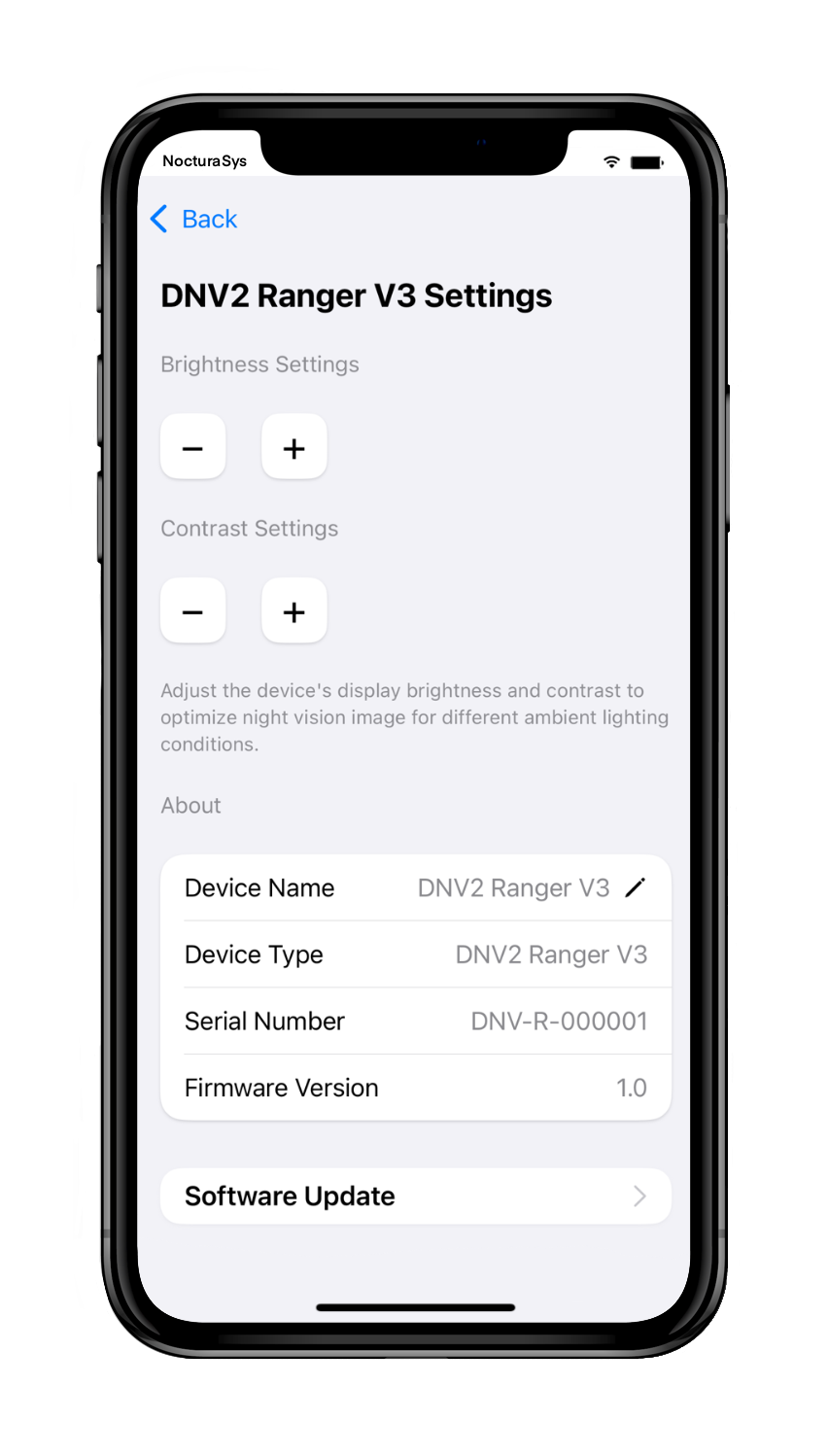

Control your DNV2 ranger v2.
With the NocturaSys app, adjusting brightness and contrast on the DNV2 Ranger V3 is quick and effortless — ready for any mission.
Explore all functions.

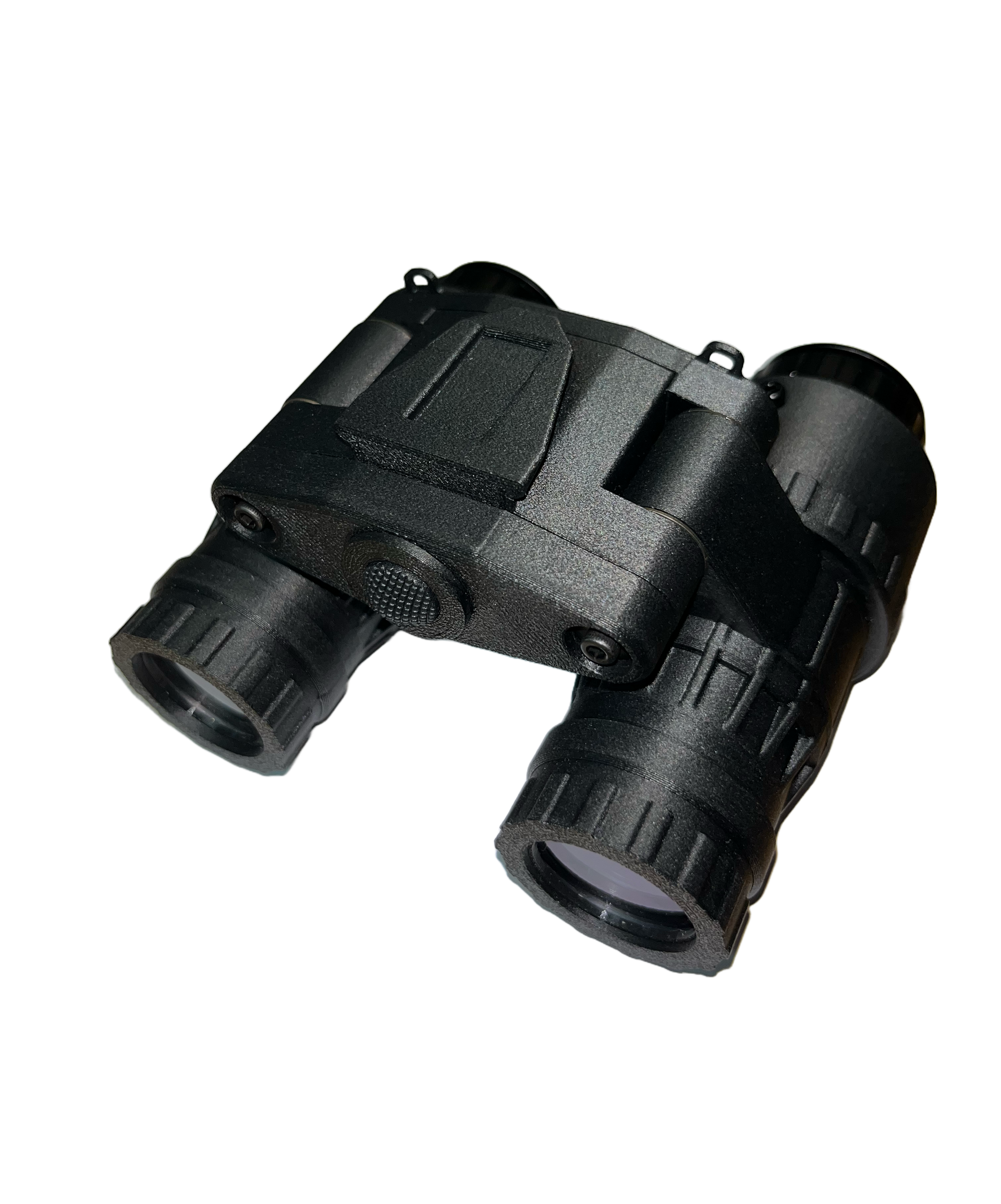

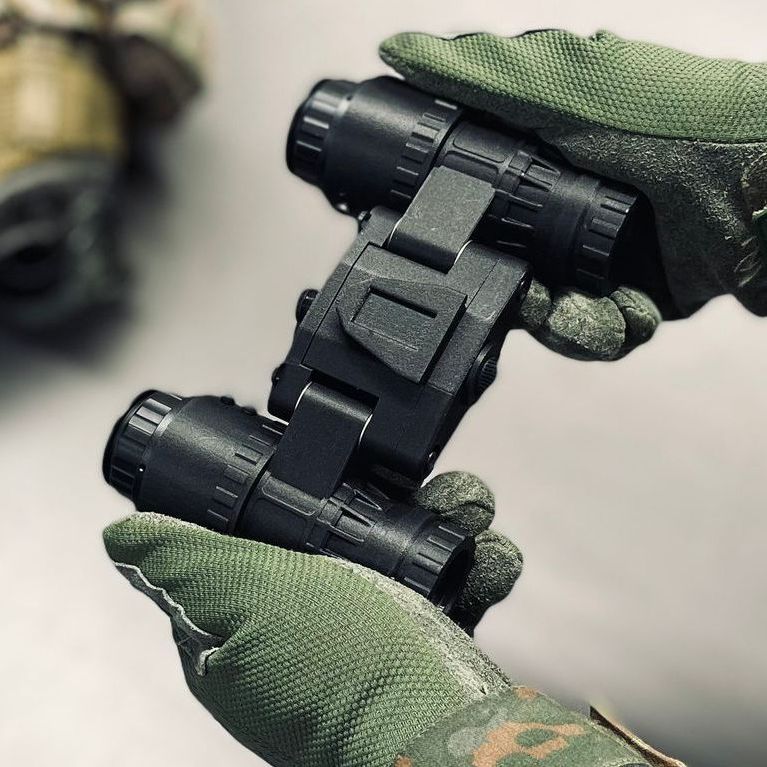

Feels light. acts heavy.
Carry less. Achieve more. The Ranger V3 improves workflow while maintaining total familiarity
for V2 veterans.

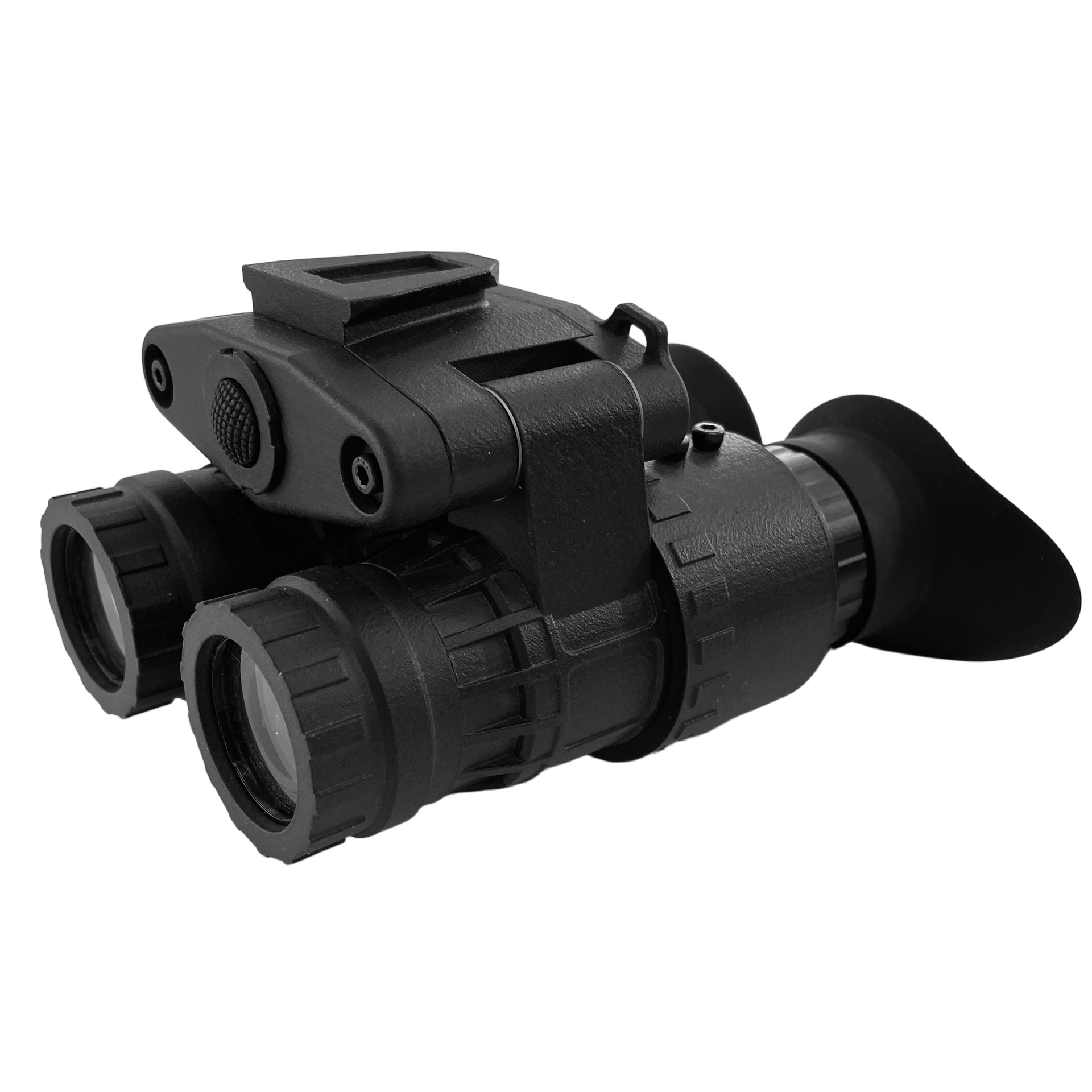

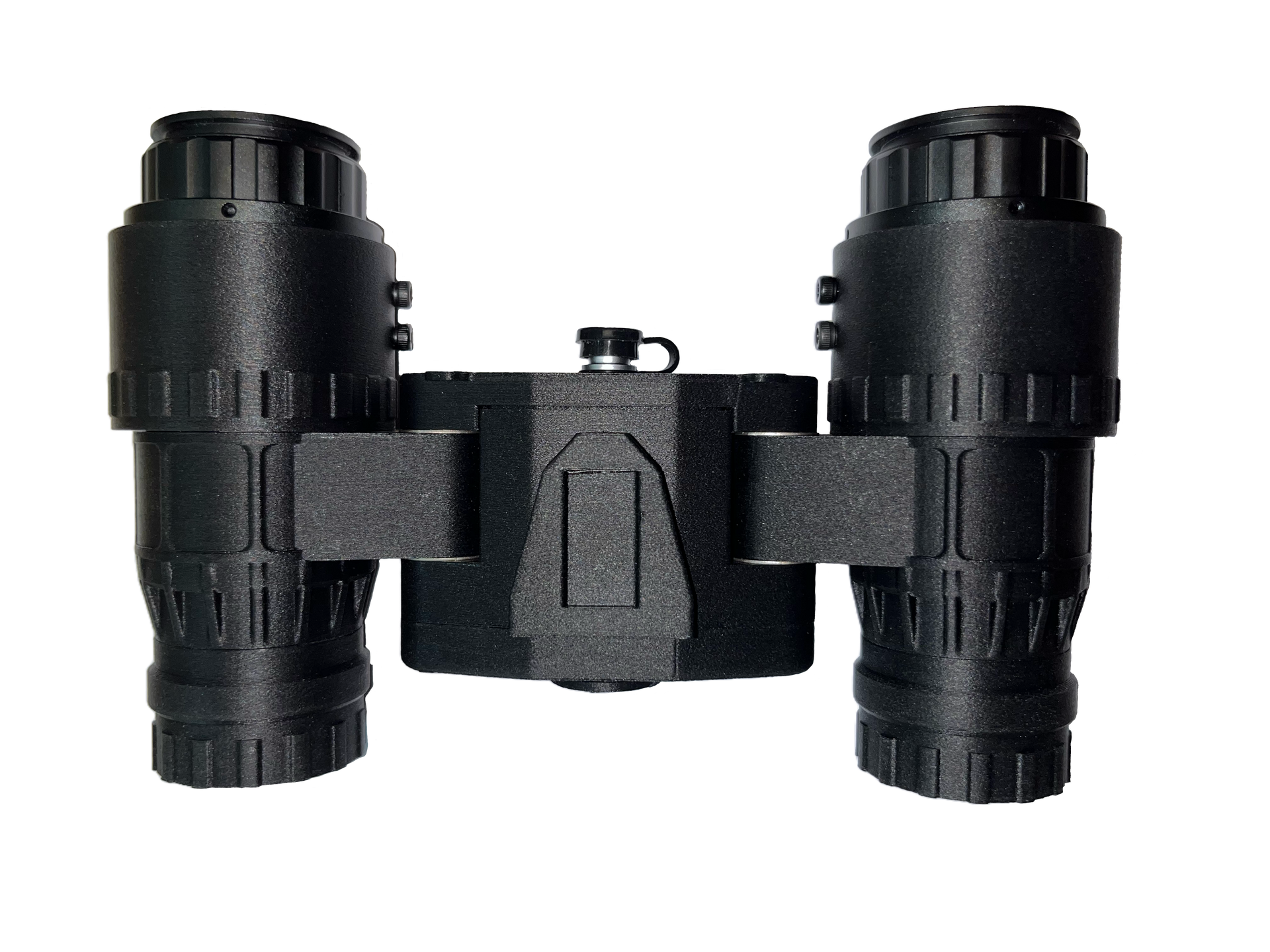

Specifications:
PHYSICAL CHARACTERISTICS
Dimensions: 117x112x79mm
Weight (Binocular): 483g
Material: PETG CF (Standard)

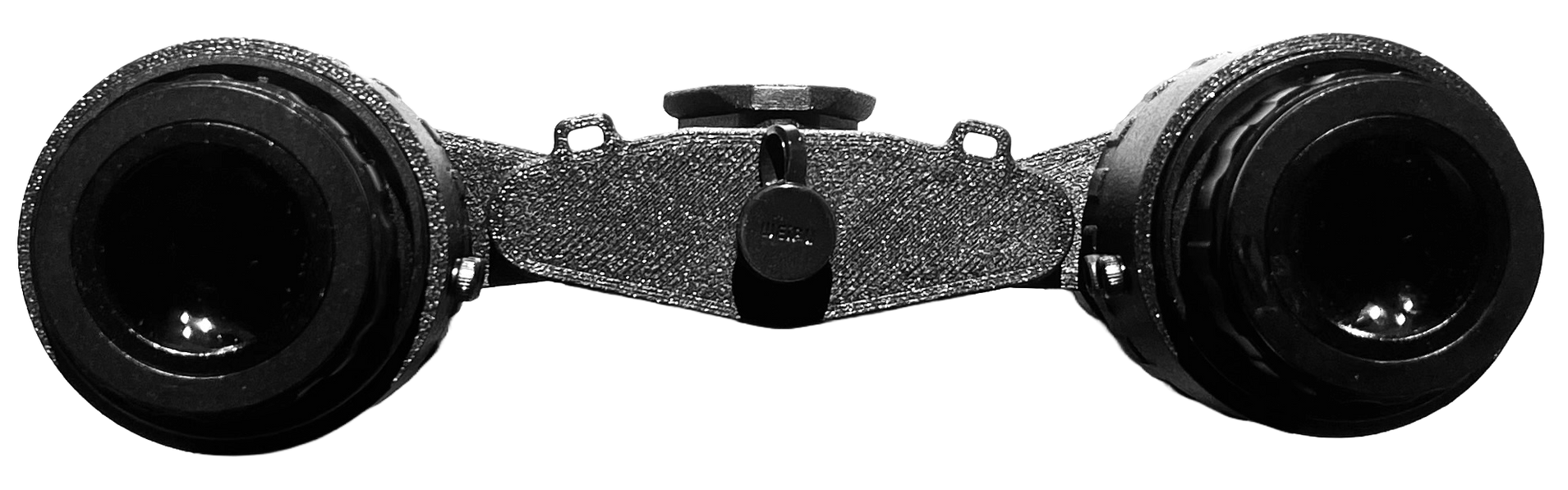

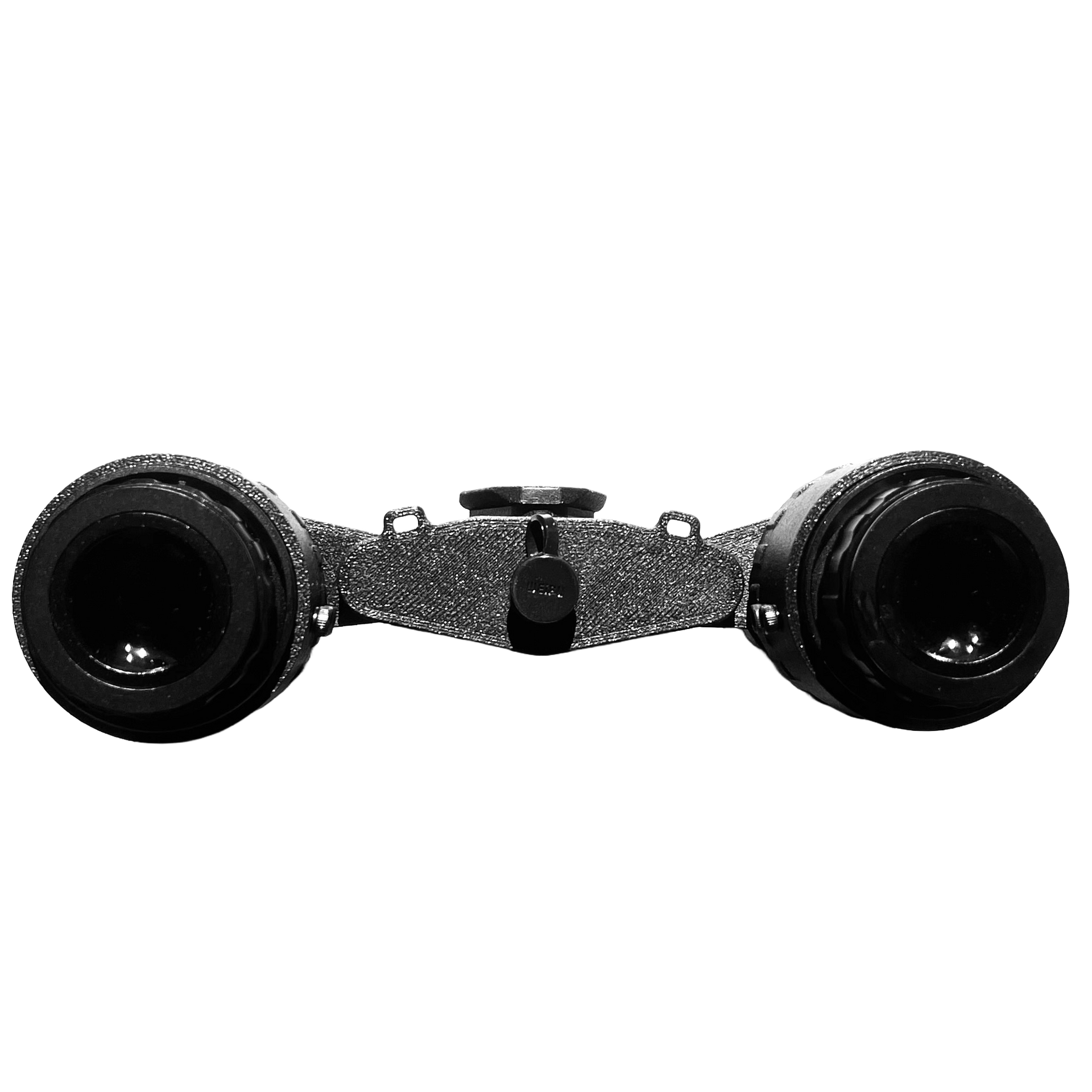

Interpupillary Adjustment: 51mm - 85mm
Diopter Adjustment: ± 4
Generation: D-GEN 3
Number of Image Tubes: 2

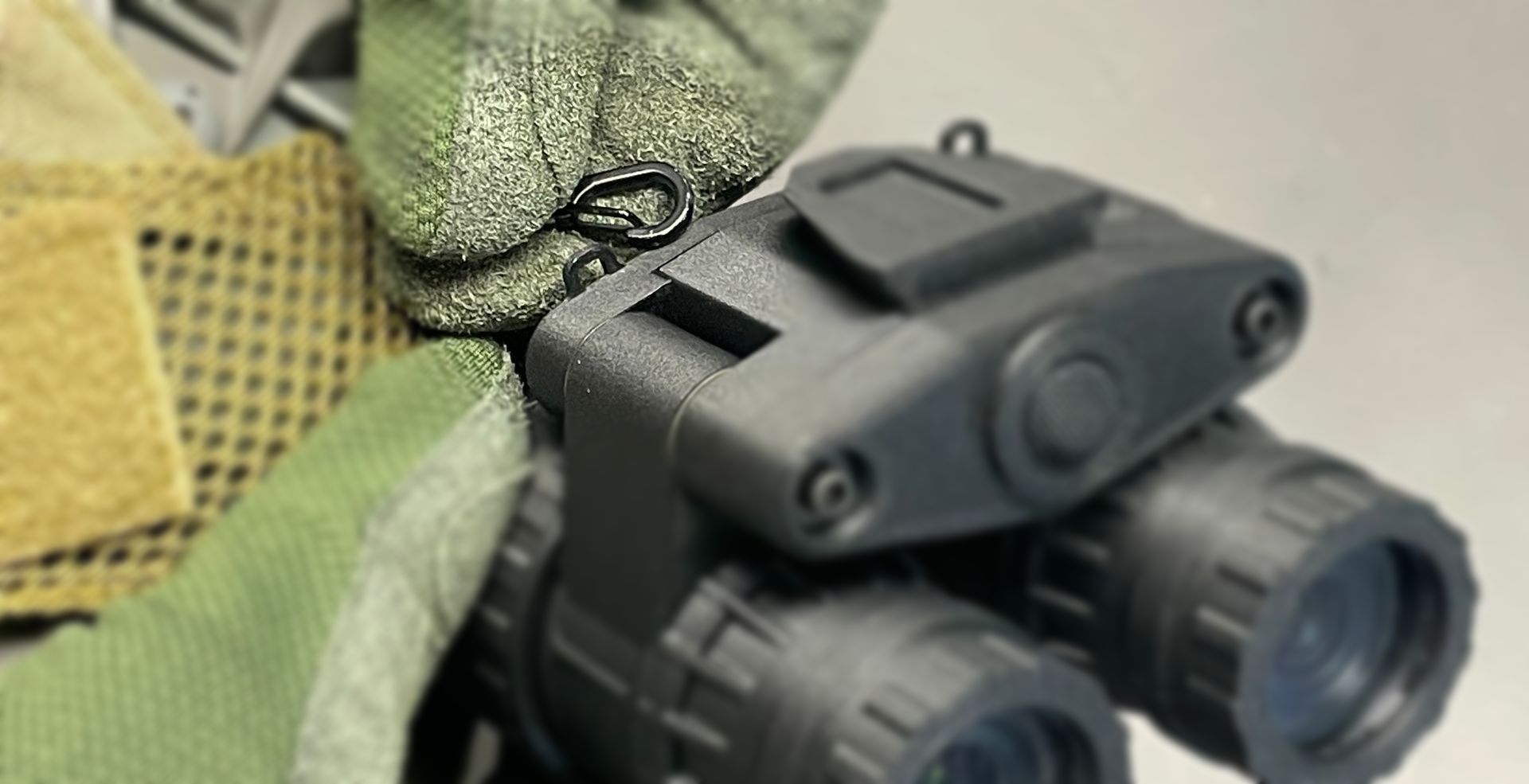

Mounts: L4G24 Mount compatible
Vertical Adjustment: Compatible with adjustment in helmet mount
CAMERA
- Sensor: 1/1.8" CMOS
- FOV: 42.1°(Horizontal)/23.7°(Vertical)
- SNR: 50db
- Refresh Rate: 50Hz
- Latency: 20ms
- Spectrum: 850-940nm

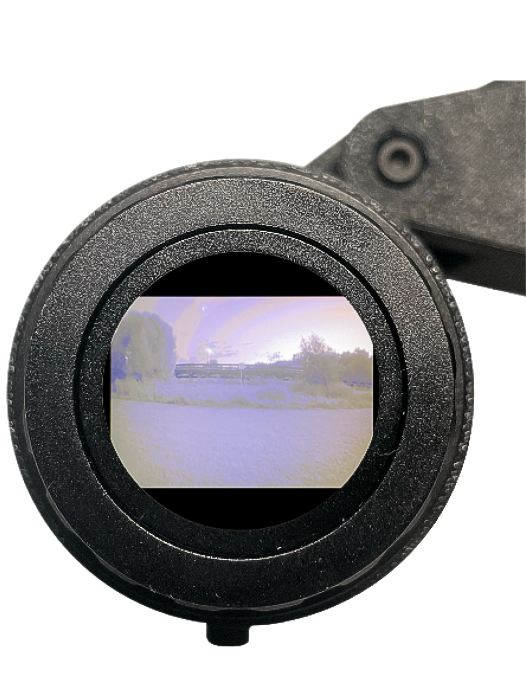

DISPLAY
- Resoultion: 1024x768px
- Format: 4:3
- Technology: OLED
ENVIROMENT
- Minimum Illumination: 0,001lux
- Protection Class: similar to IP44
- Temperature: -5°C to 60°C
BATTERY INFORMATION

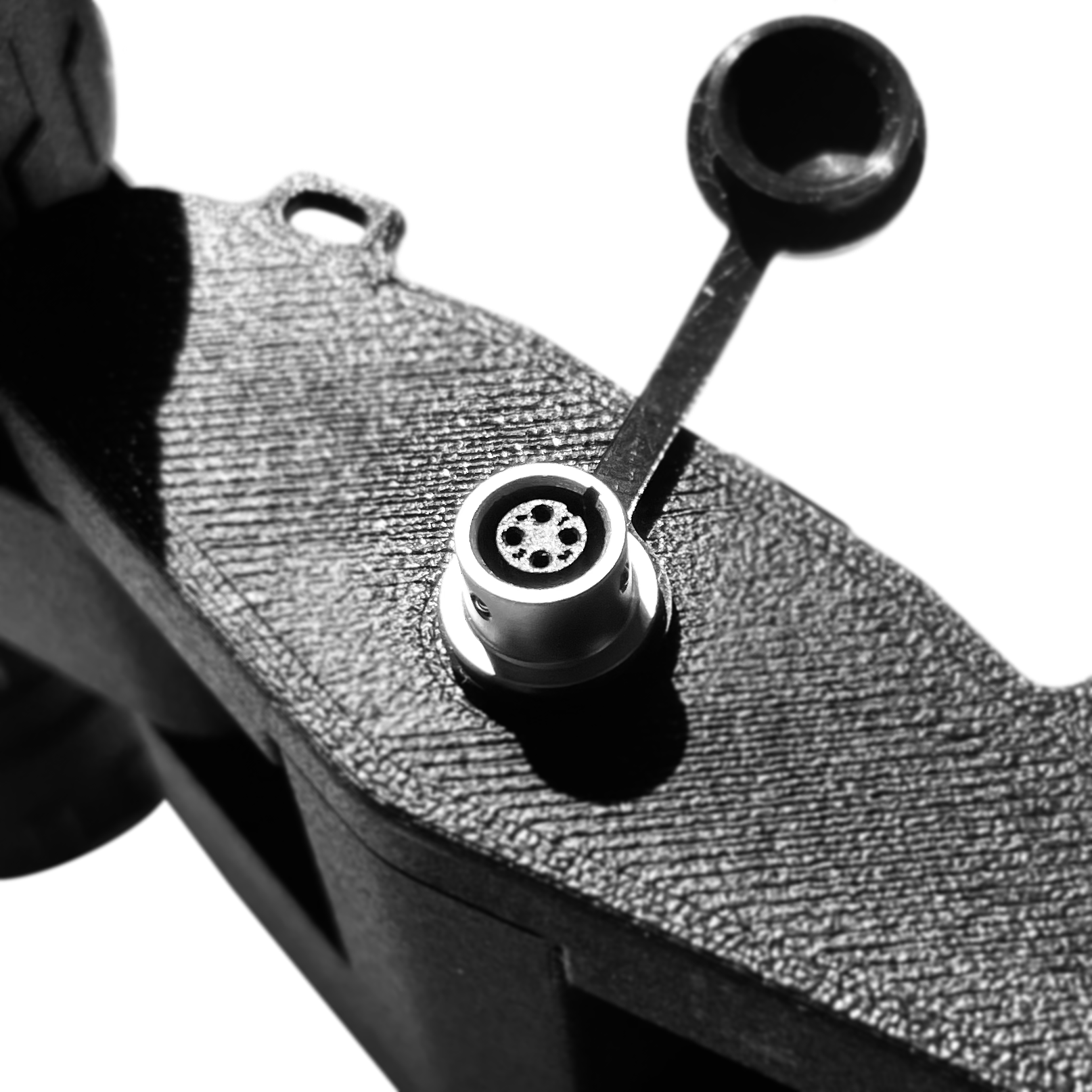

- external Powersupply required (USB Powerbank 5VDC)

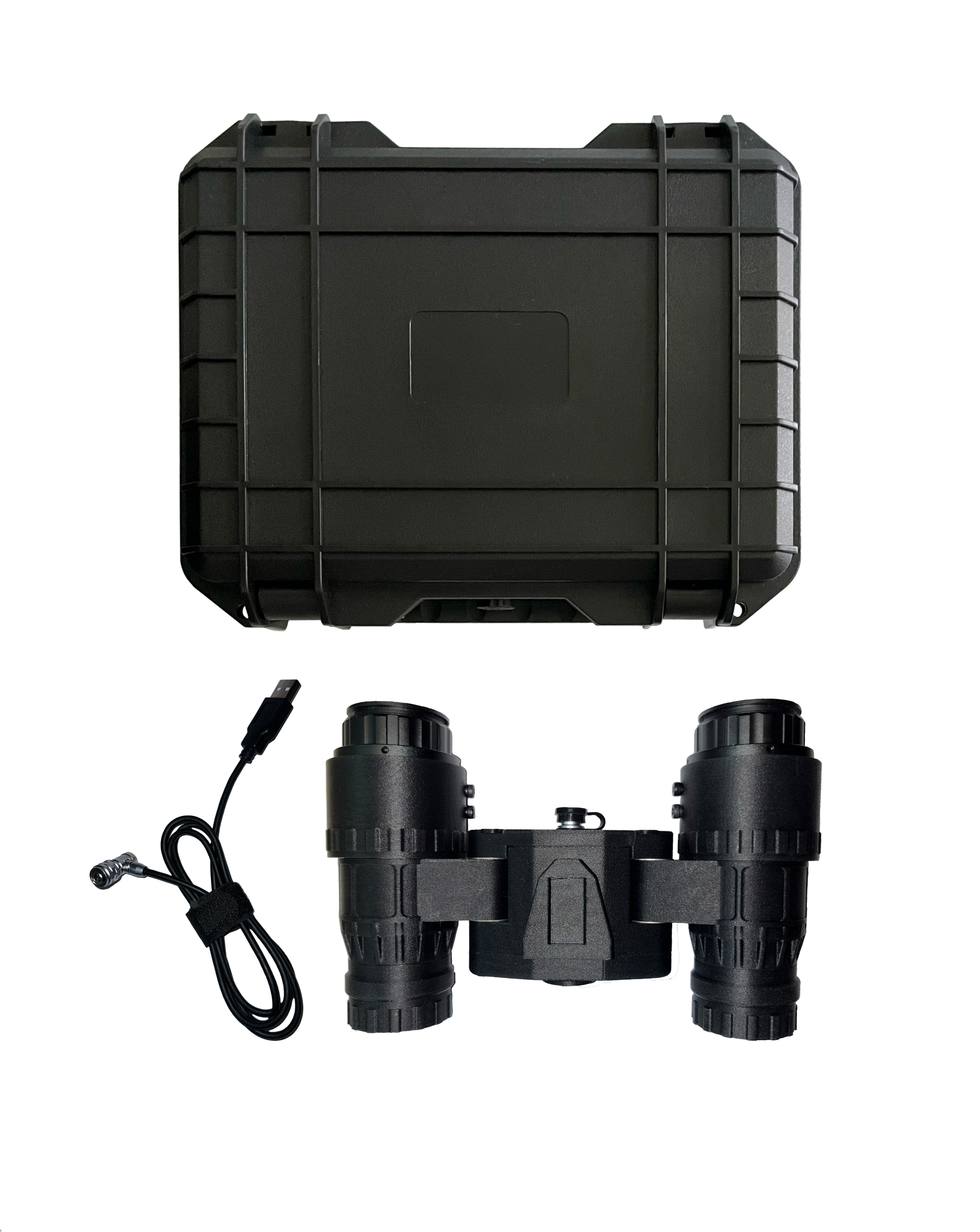

STANDARD EQIPMENT
- DNV2 Ranger V3
- Hard-Case
- Eye Cups (2x)
- Powercable
- User Manual (Online)
AVAILABLE ACCESSORIES
REcord your mission. revisit every moment.
react with certainty.
NEW
DNV2 RANGER V3
From 1499€*
*contact us for custom material requests.
*for recording extern recording module is required.
