VRTX
DRONE CONECTION SYSTEM

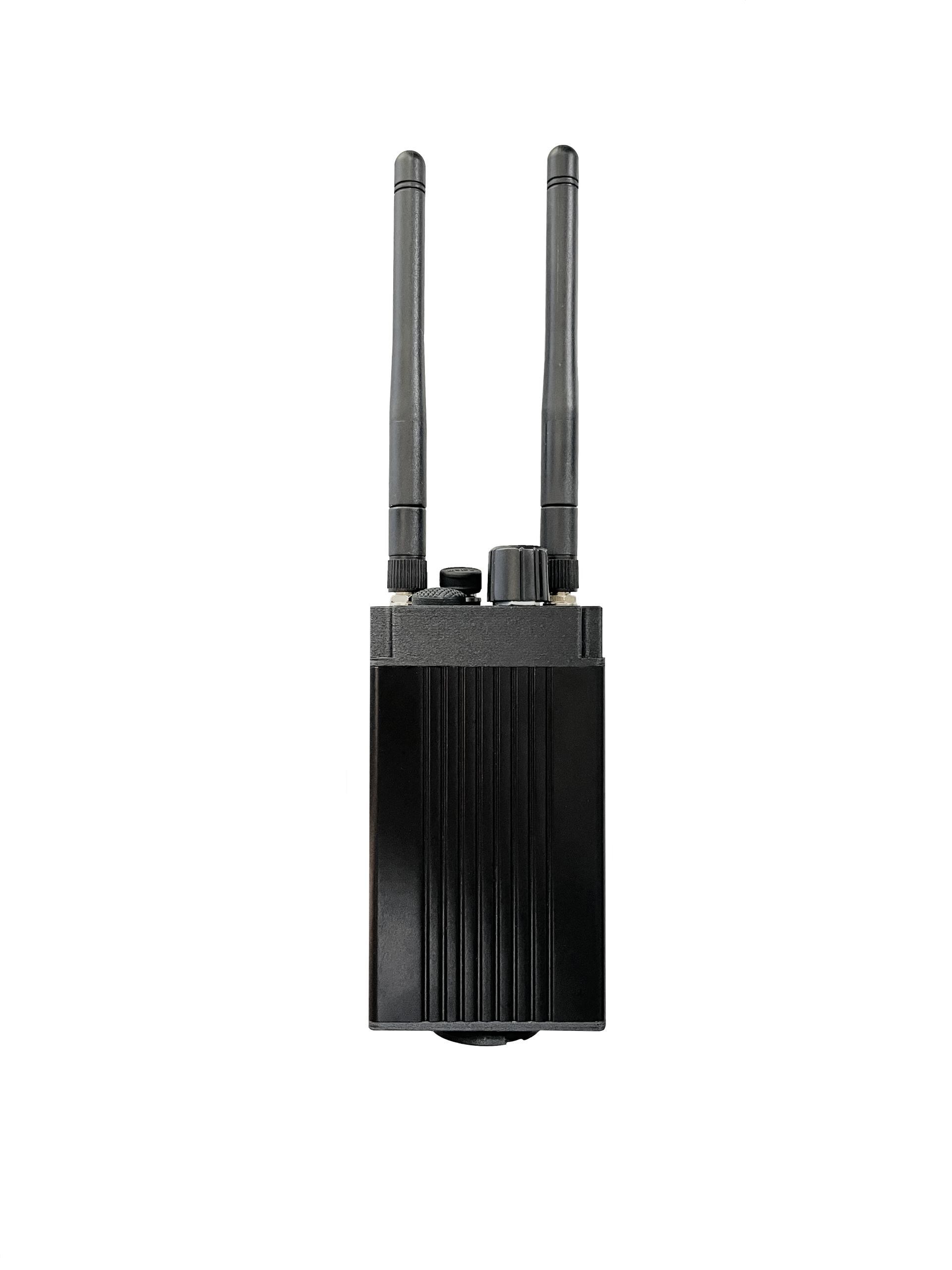

The NocturaSys VRTX is the first groundbreaking real-time wireless video transmission platform between nightvison and thermal imaging systems. It enables seamless, low-latency video streaming NocturaSys devices.
Key Features:

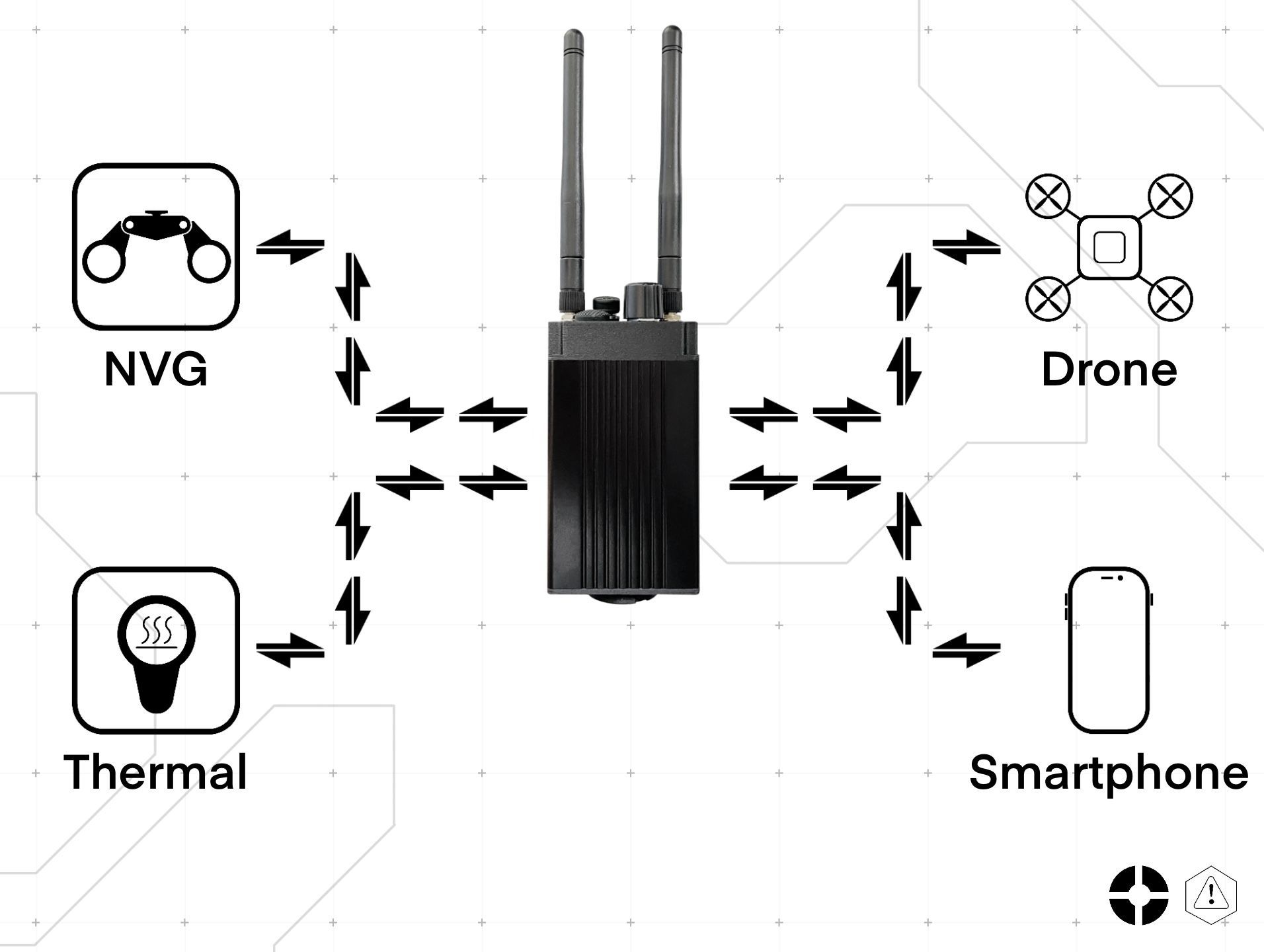

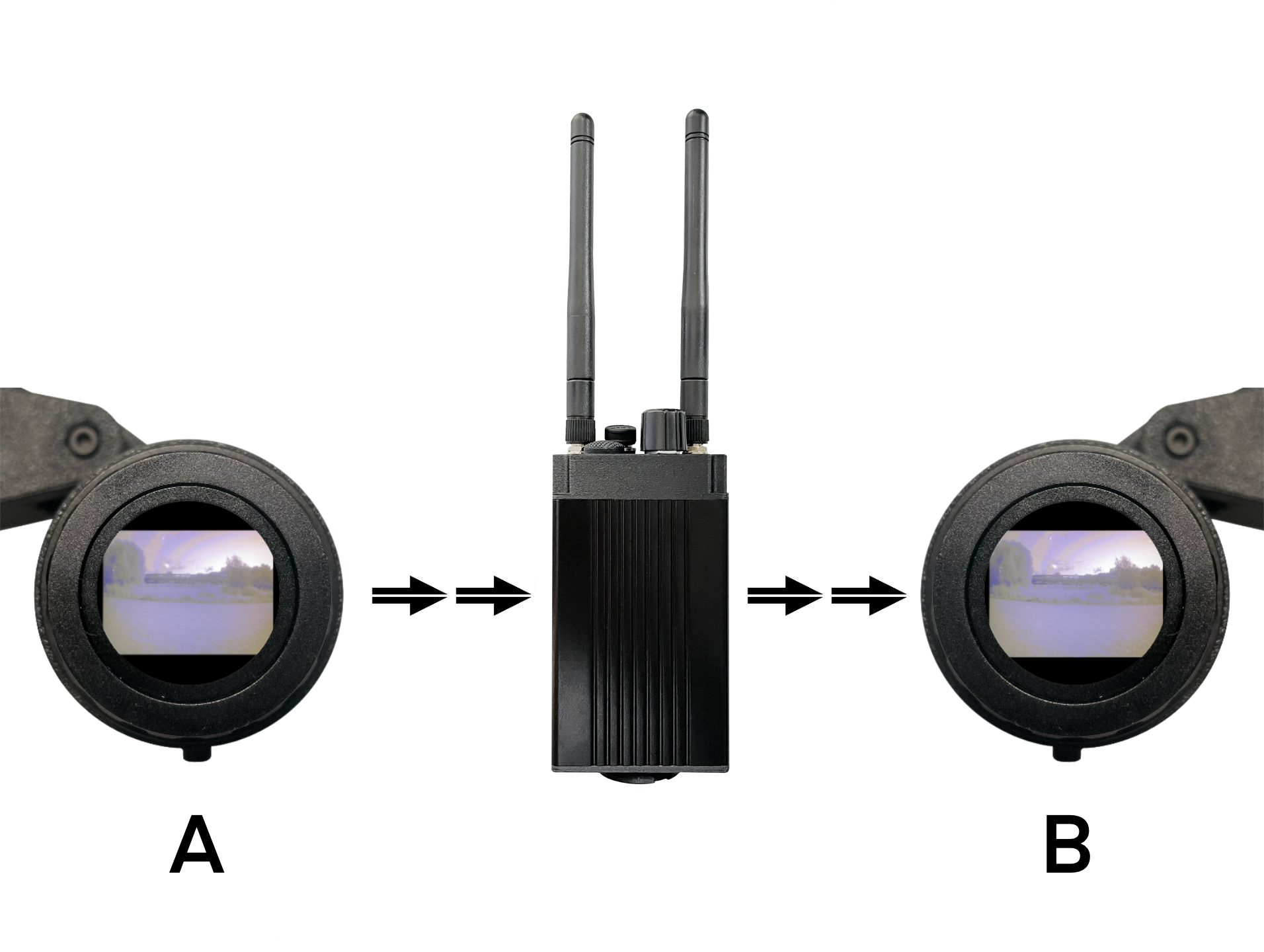

- Real-time device-to-device streaming that sends live video between compatible night vision and thermal imaging gear

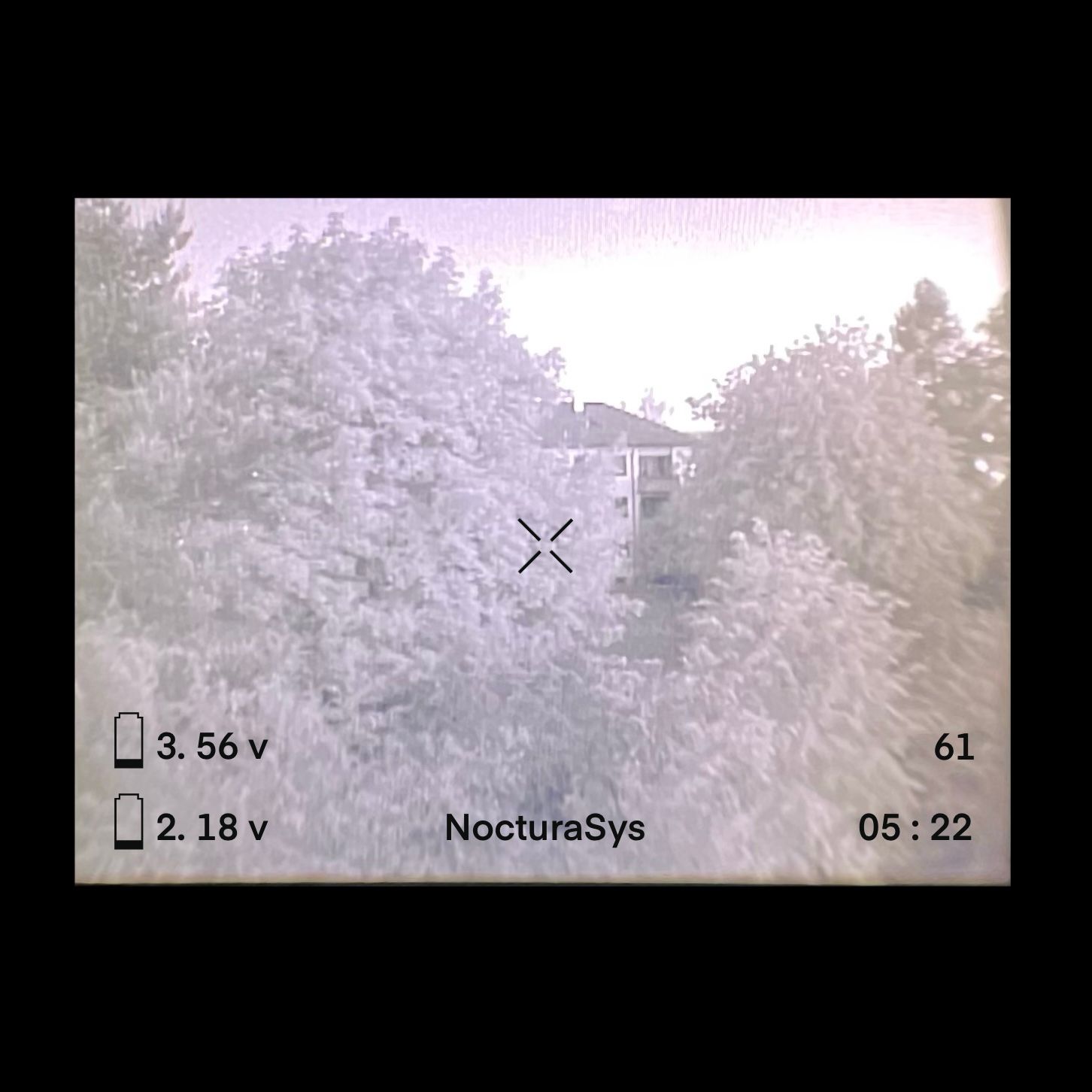

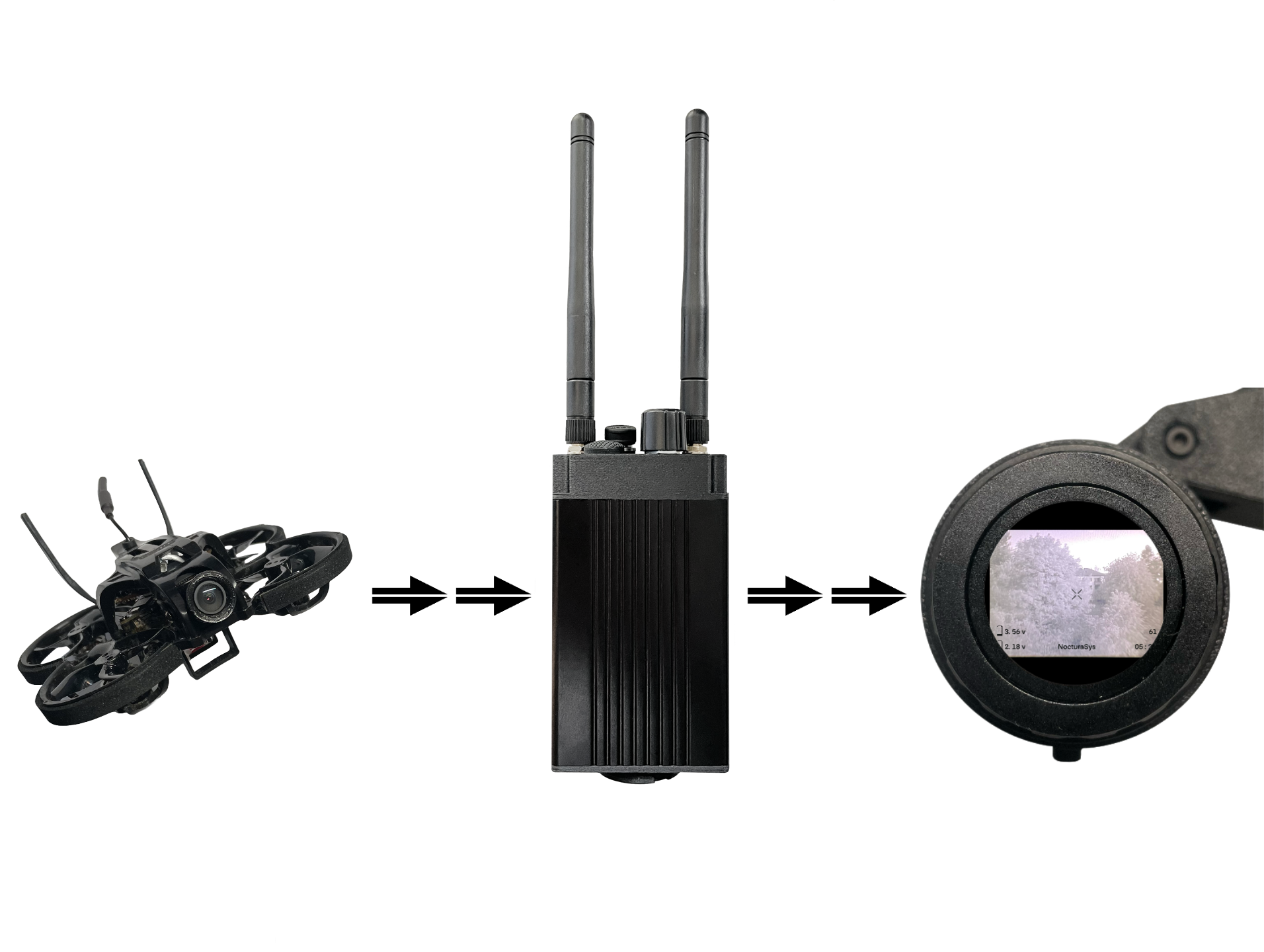

- Live FPV drone integration: view real-time drone feeds directly on supported displays like night vision, thermal monoculars, or even a smartphone.
- Team connectivity that lets you share live feeds with teammates’ devices for better coordination and shared vision in the field.

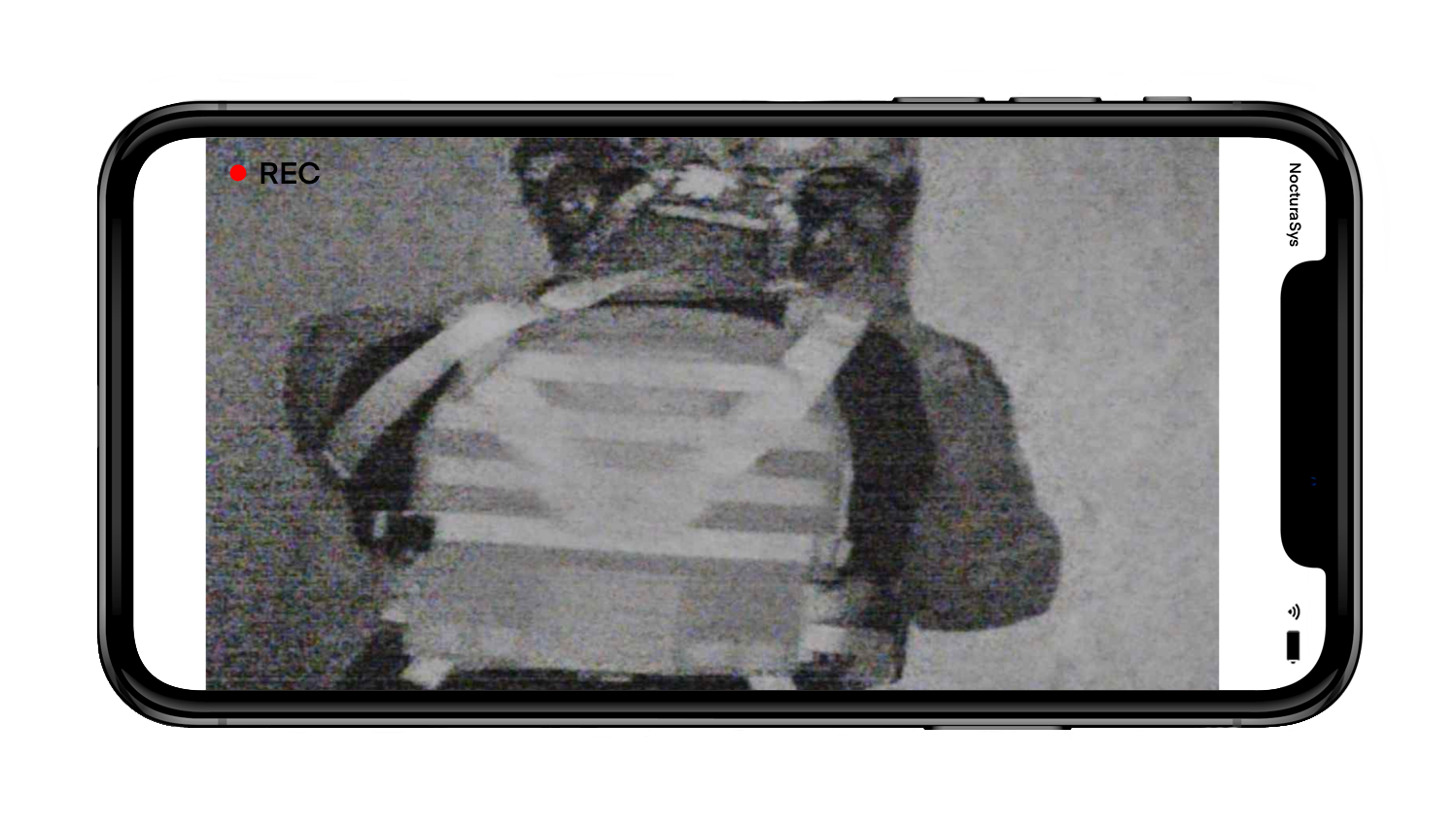

- Mission recording and documentation for capturing every crucial moment for replay, analysis, or post-operation review.
Whether you’re coordinating a group in low-light conditions or streaming drone imagery directly to your optical device, VRTX brings real-time video connectivity to your mission toolkit with unmatched flexibility.
Specifications:
HOUSING
- Dimensions (No Battery and Antennas): 115x55x30mm
- Weight (No Battery): 140g
- Enviromental: similar to IP44
- Operation Temperature: -10° to 40°
ELECTRICAL
- Input Voltage: 5 to 11,4V
- Battery Connector: 2-Pin DC slide lock
- Battery Compatibility: 2x CR123A Battery/2x 18650 Battery
- Max Power Consuption (TX): 800mW
- Power Consuption (RX): 190mW
INPUTS & OUTPUTS
- RF Connectors: RP-SMA
- VIDEO-/SIGNAL IN: WEIPU SF06 4 Pin
- VIDEO-/ SIGNAL OUT: WEIPU SF06 4 Pin
TRANSMISSION
- Frequency Band: 5,8Ghz
- Frequency: 5645 ~ 5945MHz
- Channels: 48

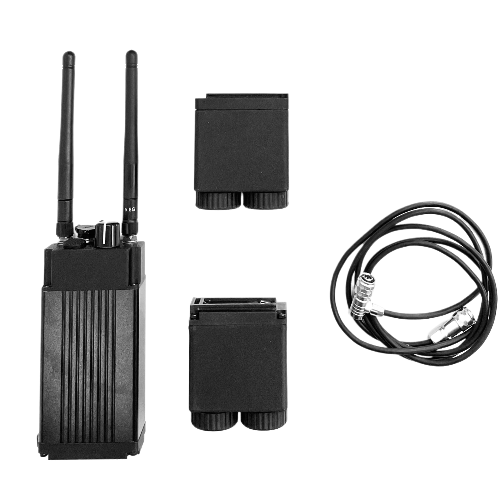

INCLUDED
- NocturaSys VRTX
- Battery Pack 2x
- Transport Box
- Operation Cable
*contact us for custom material requests.
