EVERYTHING IMPORTANT AT A GLANCE.
The DNV2 Ranger V2 is the successor to the proven DNV2 Ranger and sets new standards in the price range of digital night vision binoculars. With its dual-tube technology, high-resolution OLED displays, and ultra-low-light camera, it delivers an unparalleled night vision experience for all beginners. The combination of these innovations opens up an entirely new dimension of digital night vision capability.

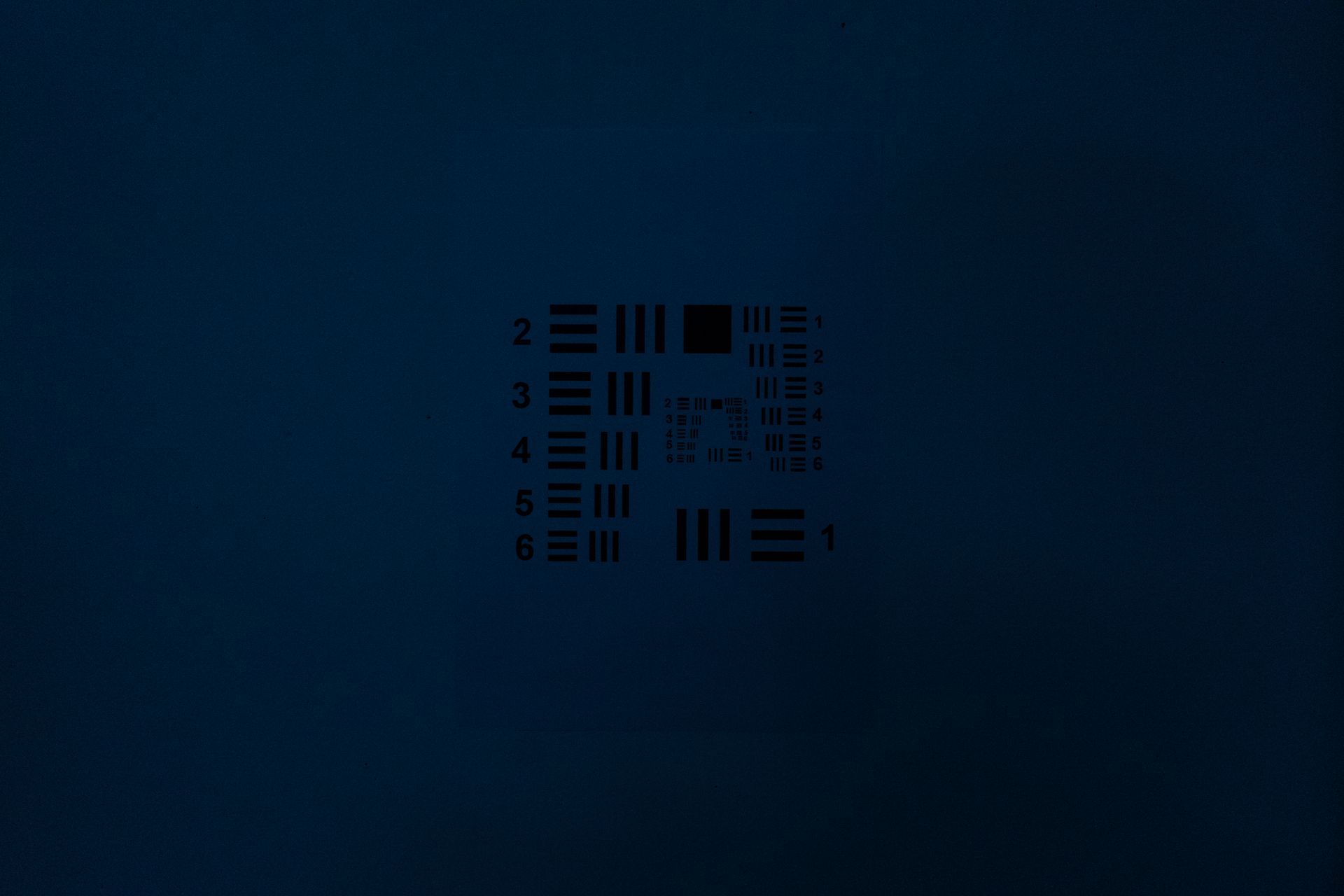

Sony A7 Mark III
(Human Eye)*
24 MP, ISO 6400, 41mm, f/4.0, 0.6s

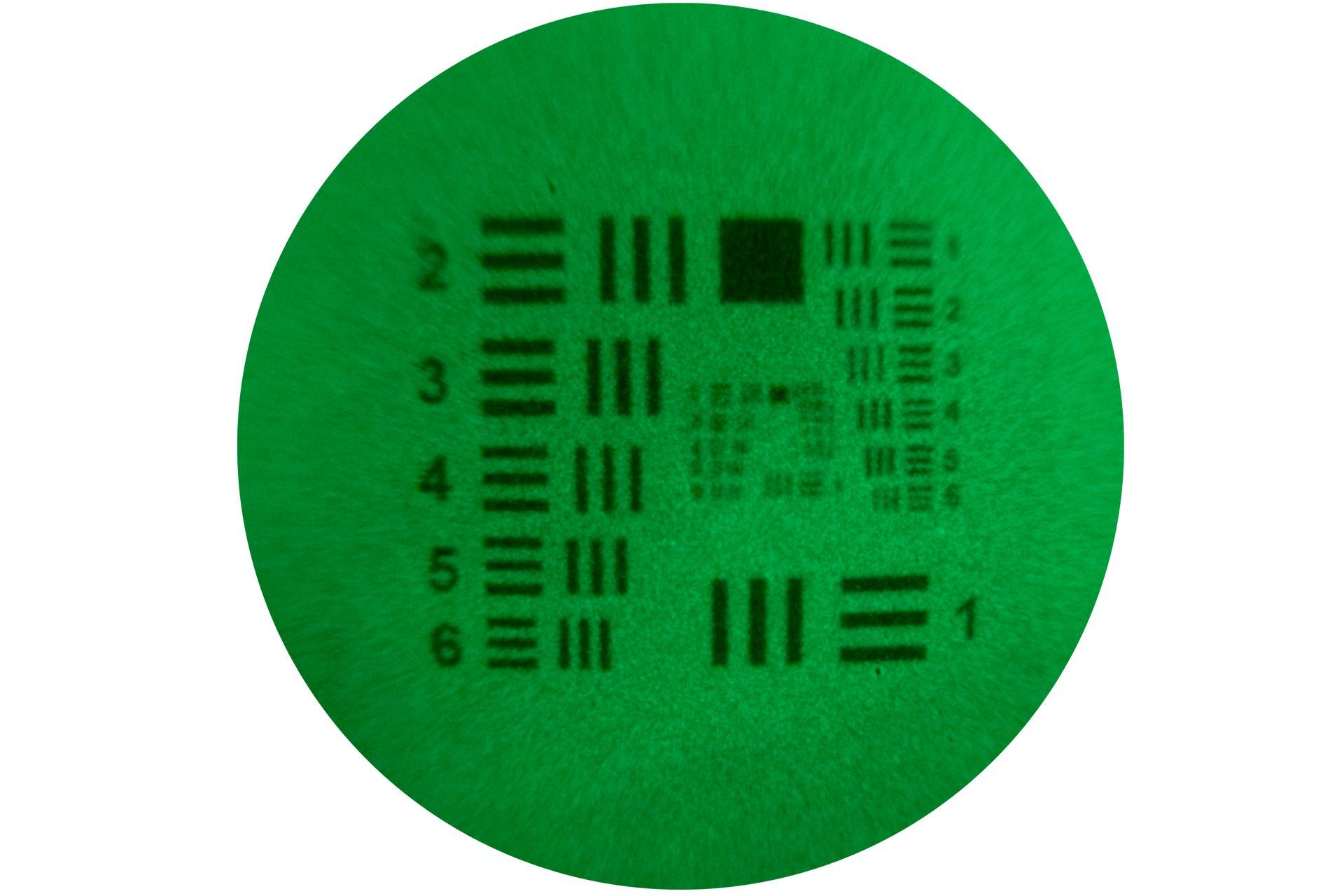

Photonis XX1663/Q80
(Analog Nightvision)

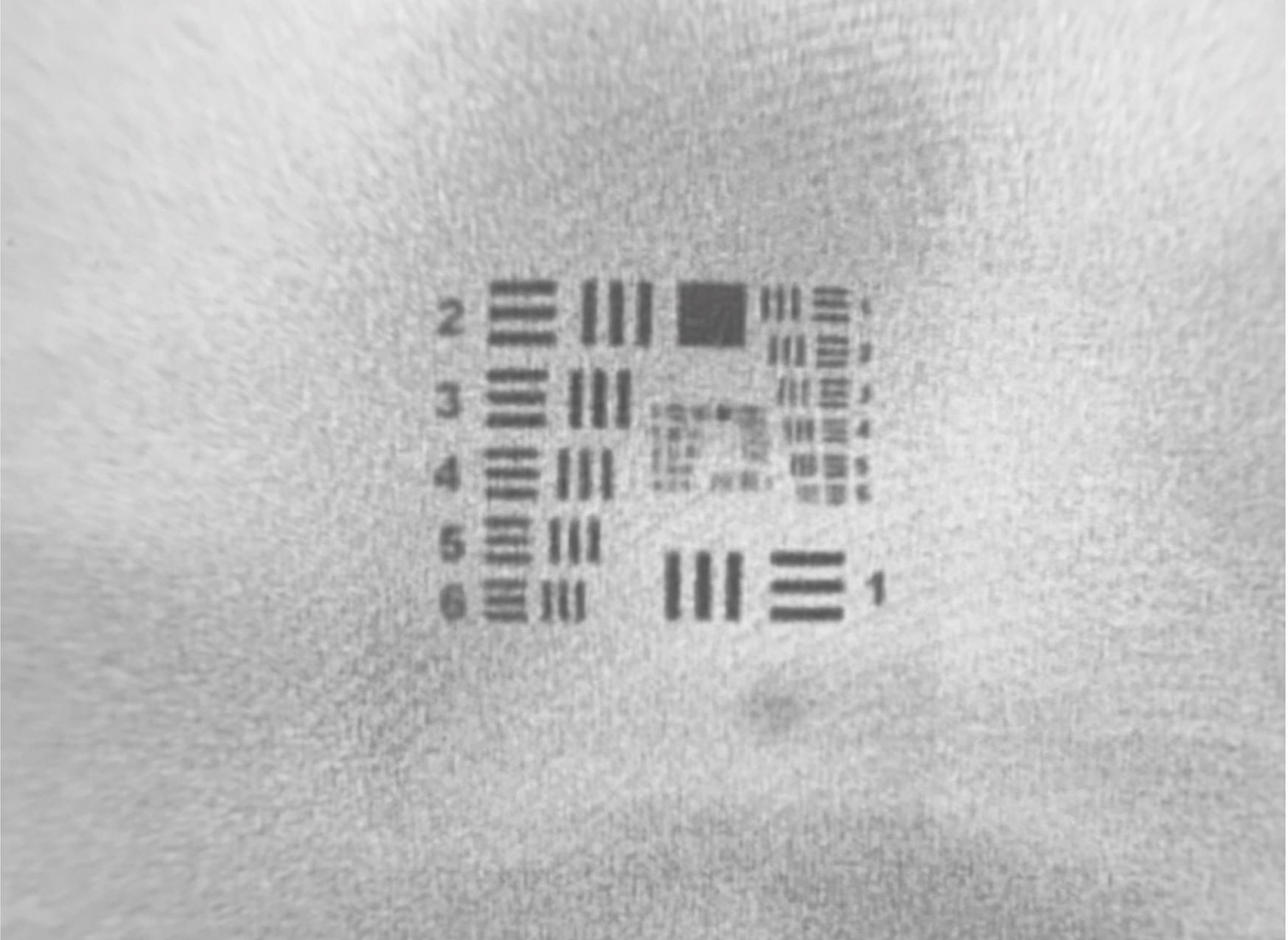

DNV2 Ranger V2
(no IR Illumination)
*Replicating the human eye with a camera is challenging due to the eye's complex dynamic range, adaptive focus, and real-time processing of
light and contrast, making captured images only an approximation of human vision.
Stay on step ahead even in complete darkness.
The integrated, switchable high-performance IR illumination enables you to light up even the darkest corners – without the need for additional accessories. Complex helmet systems with separate light sources are now a thing of the past.

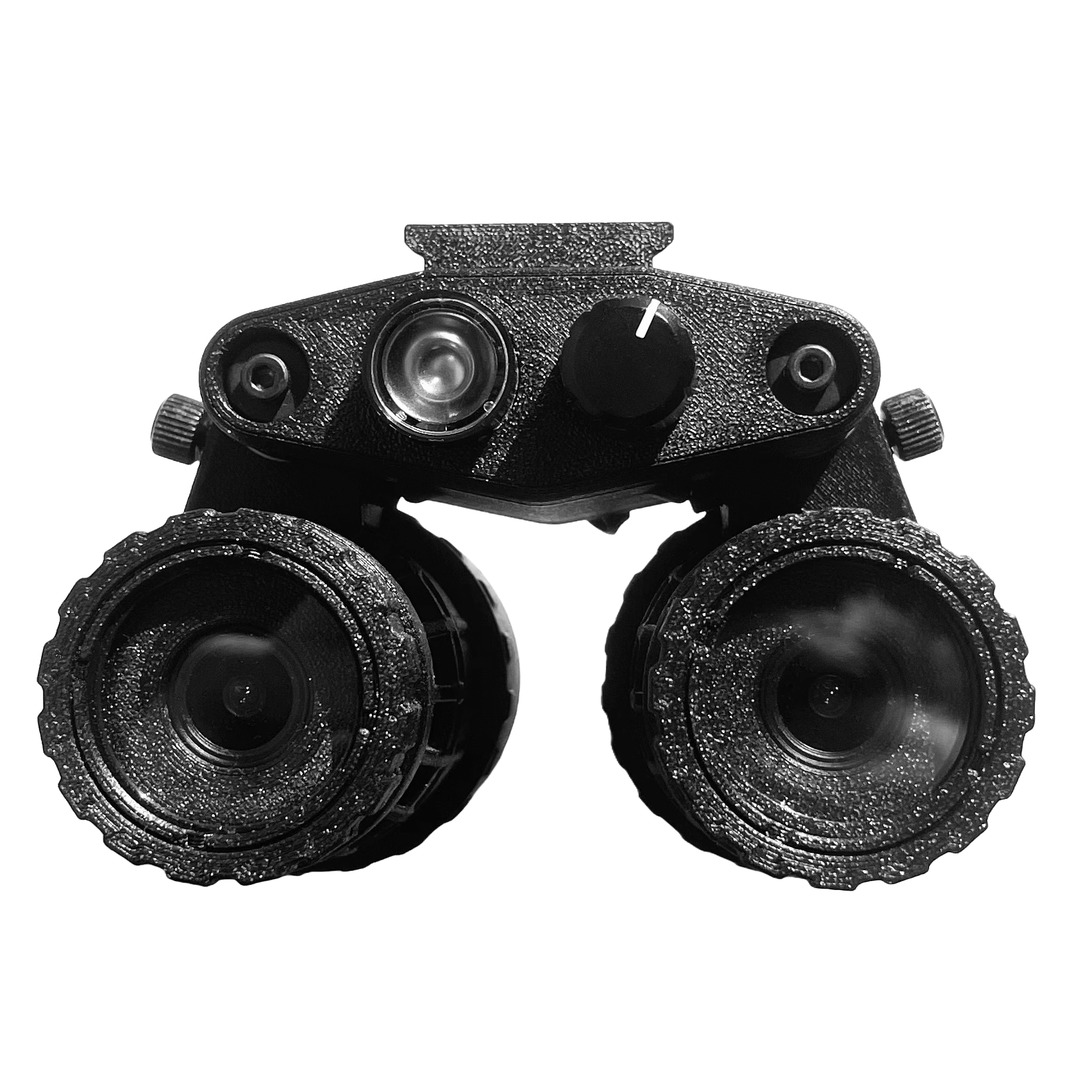

Explore all functions.
IR ILLUMINATOR
CAMERA LENS PROTECTION
NVG Mounting Shoe
MAXIMUM comfort.
The DNV2 Ranger V2 impresses with its innovative and slim design, offering optimal compatibility with targeting systems while ensuring maximum user comfort during operation. Its durable construction guarantees reliable performance, even under the most demanding conditions.
Additionally, the reduced overall helmet weight minimizes neck strain, enhancing long-term wearability and operational effectiveness.
Designed for exceptional performance.
Specifications:
PHYSICAL CHARACTERISTICS
- Dimensions: 117x112x79mm
- Weight (Binocular): 422g
- Material: PETG CF (Standard)
- Interpupillary Adjustment: 51mm - 85mm
- Diopter Adjustment: ± 4
- Generation: D-GEN 2
- Number of Image Tubes: 2
- Mounts: L4G24 Mount compatible
- Vertical Adjustment: Compatible with adjustment in helmet mount
CAMERA
- Sensor: 1/2.8" 2MP CMOS
- FOV: 75° (Horizontal) - 56° (Vertical)
- SNR: >50db
- Latency: 26.2ms
- Refresh Rate: 50Hz
- Spectrum: 850-940nm
DISPLAY
- Resoultion: 800x600px
- Format: 4:3
- Technology: OLED
ENVIROMENT
- Minimum Illumination: 0,01lux
- Protection Class: similar to IP44
- Temperature: -5°C to 60°C
BATTERY INFORMATION
- external Powersupply required (USB Powerbank 5VDC)

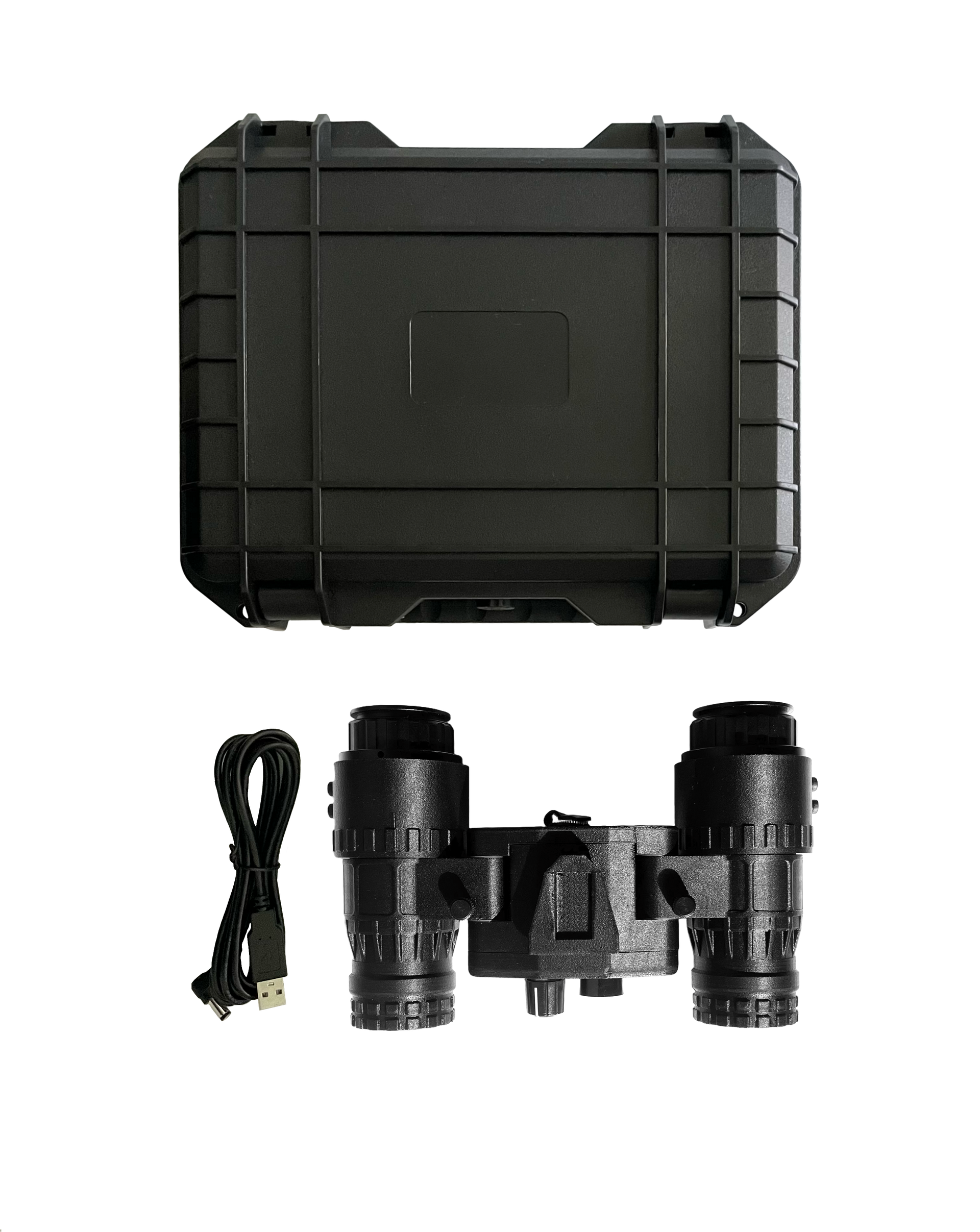

STANDARD EQUIPMENT
- DNV2 Ranger V2
- Hard-Case
- Eye Cups (2x)
- Powercable
- User Manual (Online)
AVAIABLE ACCESSORIES
