ENTER THE WORLD OF THERMALVISION
The PREDATOR MICRO is the perfect entry into thermal imaging.
Designed for
simplicity and
efficiency.
Designed for any situation.
PM-256
The PREDATOR MICRO offers a ultra small thermal sensor that delivers a powerful image quality
for it's size.
With a sensitivity of 50mK it provides excellent detail while allowing for a small profile.
Additionally the high resolution OLED-Display and high magnification allow you to see every tiny detail.
Powered by one CR123A battery, the PREDATOR MICRO will last you for
3+ hours and if it does run out, the battery can be changed in a matter of seconds.

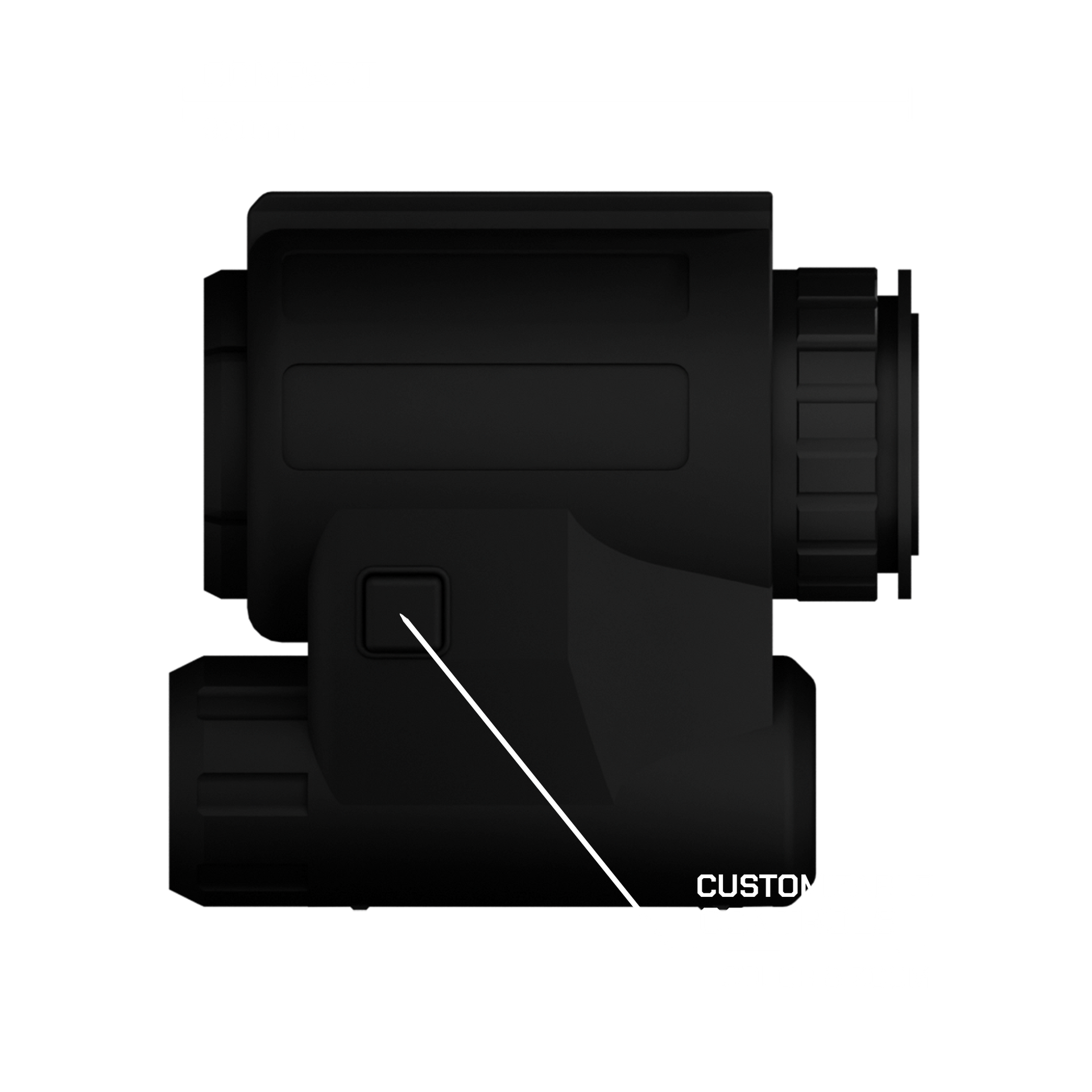

It's compact size and fully customizable controls
allow you to take any situation
under your control!
Our mobile app allows for ambidextrous operation. Easily adjust both buttons to your liking.
VERSATILITY IS KEY.

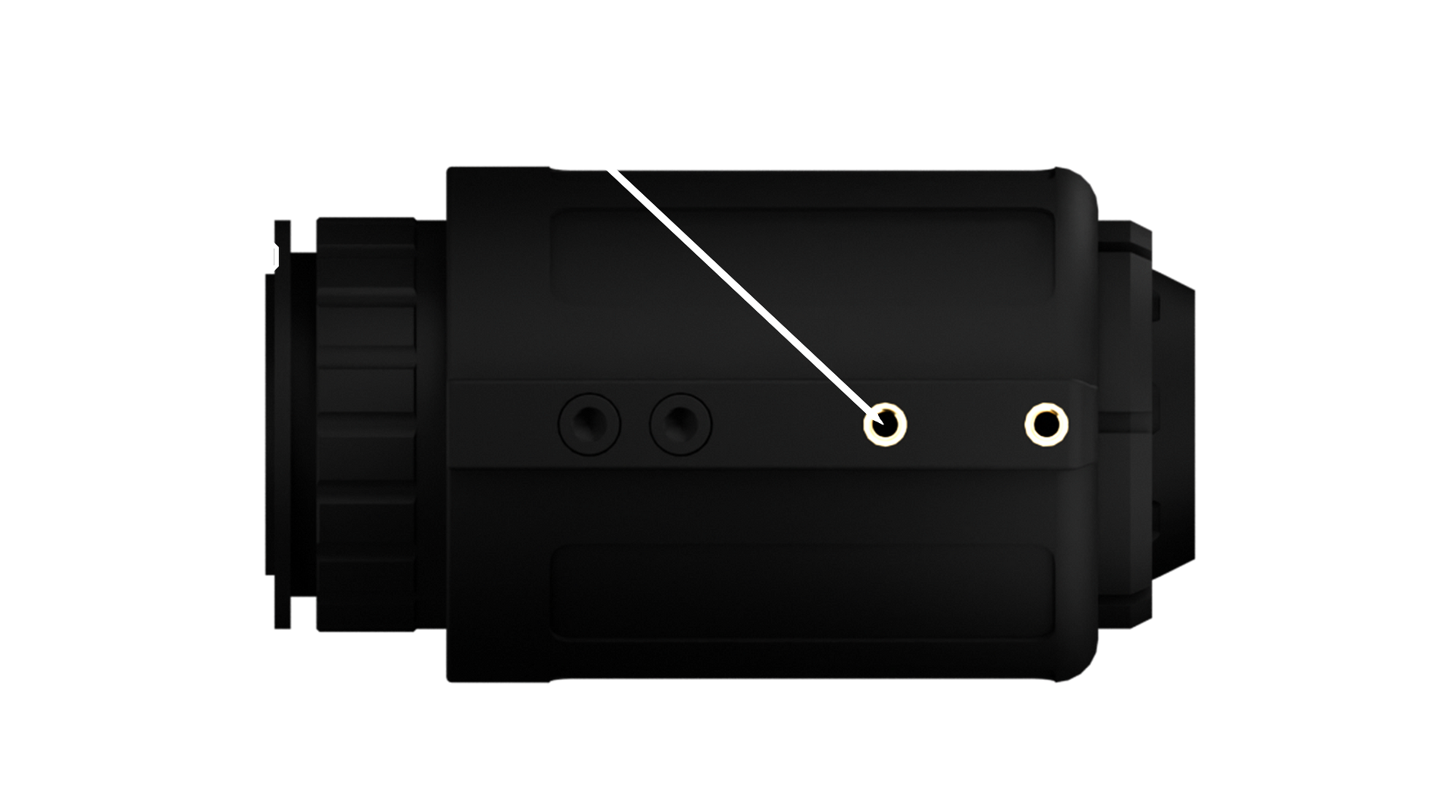

Our custom Mounting System allows the use of Adapters to mount the DEVICE on a helmet, weapon, tripod and more.
The possiblities are almost endless.

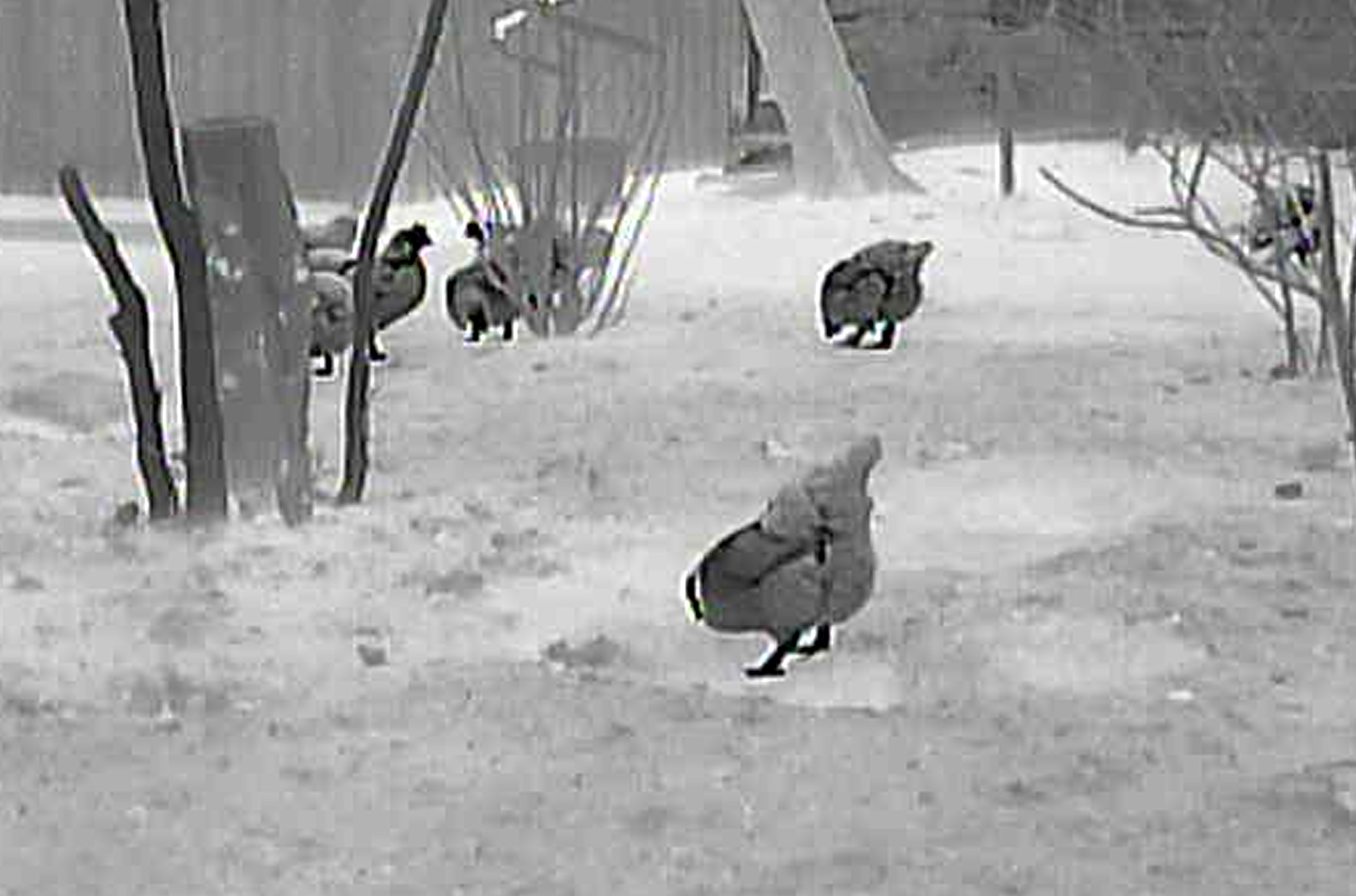

CAPTURE EVERY DETAIL.
- 10 COLOR MODES
- DIGITAL ZOOM
Get into thermal imaging today.
Specifications:
PHYSICAL CHARASTERISTICS
- Dimensions: 92x83x48mm
- Weight (Monocular without batteries): 240g
- Material: PETG CF (Standard)
- Interpupillary Adjustment: Compatible with adjustment in helmet mount, Binocular Bridge NVG Mount required
- Diopter Adjustment: ± 4
- Number of Image Tubes: 1
- Mounts: L4G24 Mount compatible,
- Vertical Adjustment: Compatible with adjustment in helmet mount
CAMERA

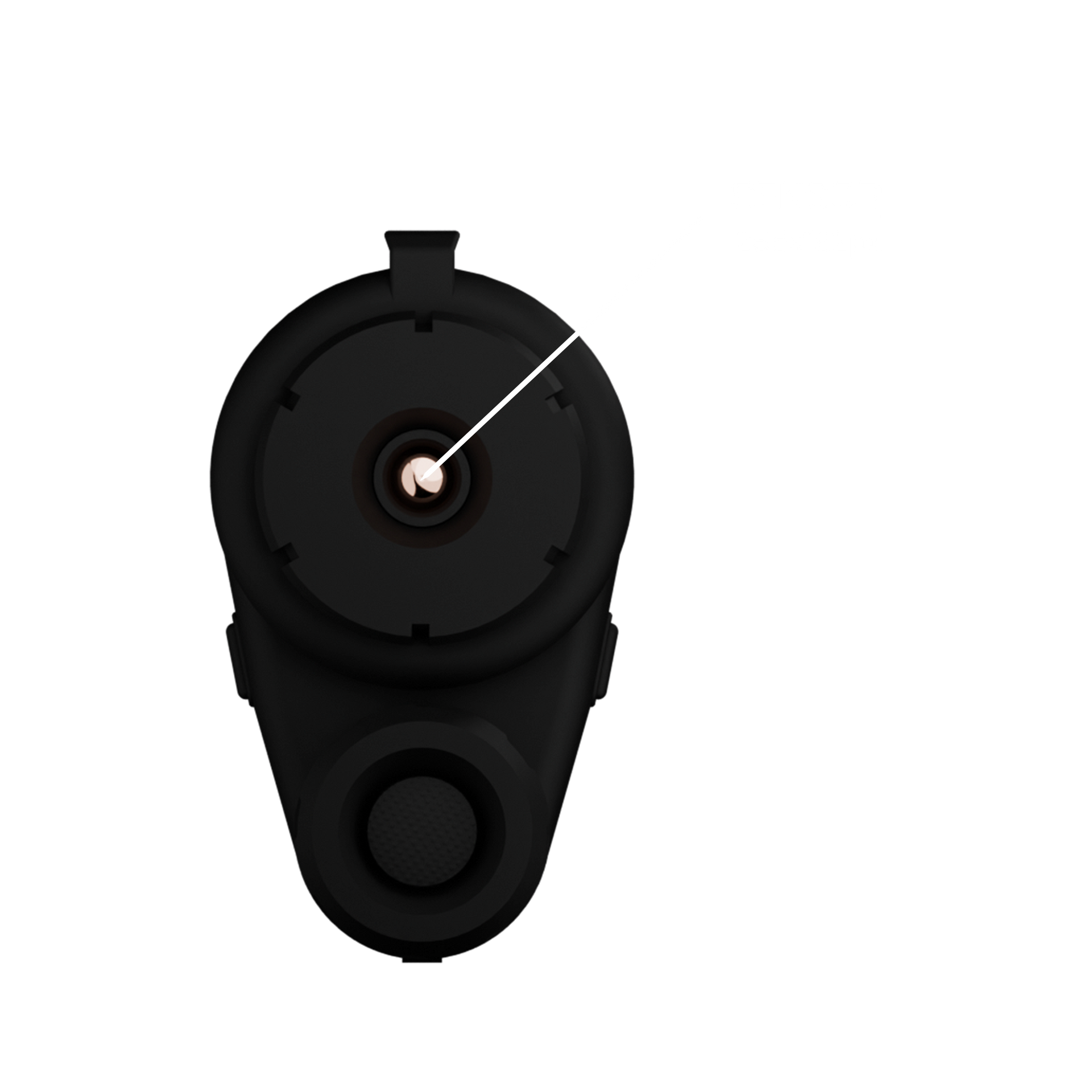

- Sensor: 256x192px
- NETD: <50mK
- FOV: 25.2° x 18.9°
- Pixel Size: 12µm
- SNR: >50db
- Refresh Rate: 50Hz
- Spectrum: IR
DISPLAY

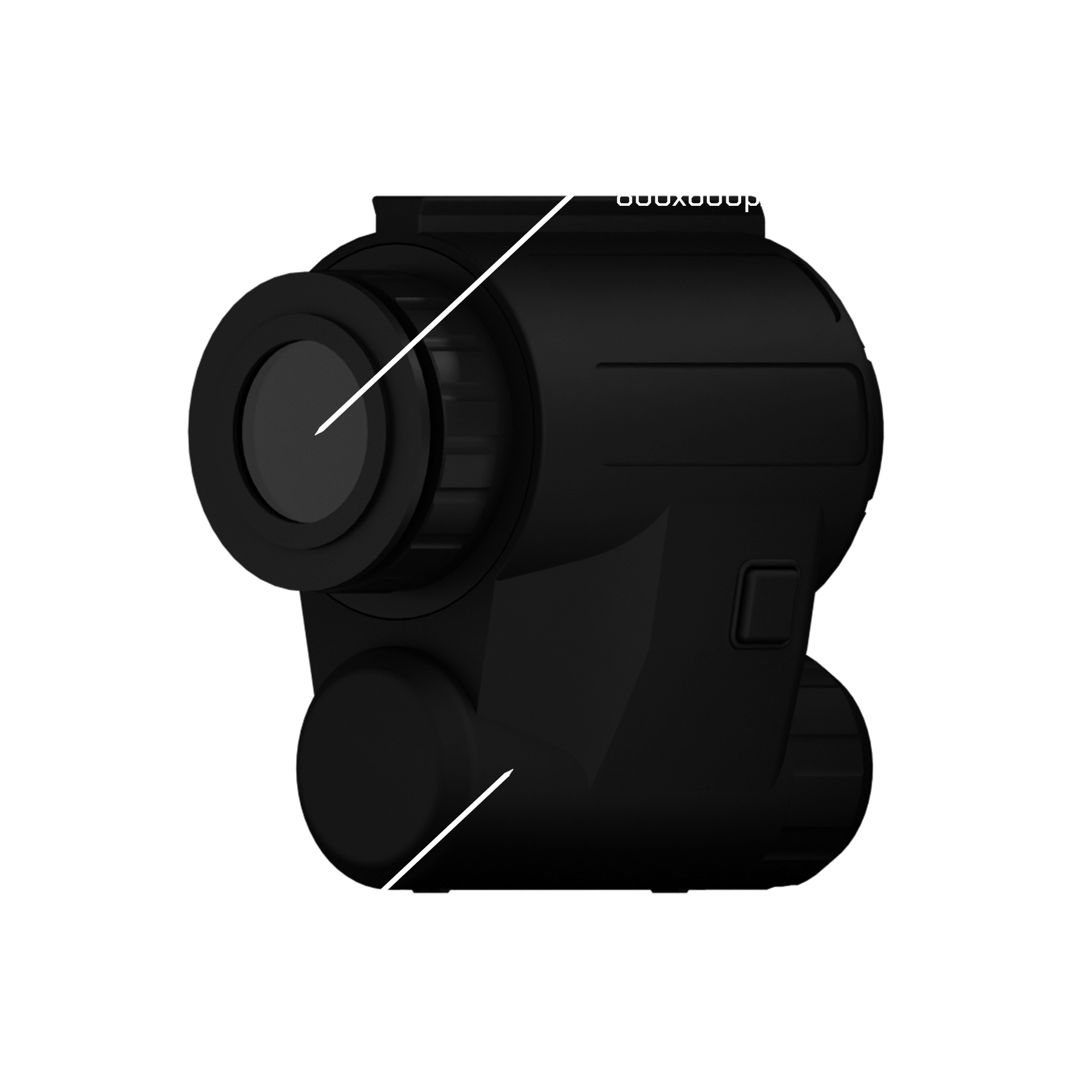

- Resolution: 800x600px
- Format: 4:3
- Technology: OLED
ENVIROMENT
- Protection Class: similar IP44
- Temperature: -5°C to 60°C
BATTERY INFORMATION
- Battery Type: CR123A (not included)
- Runtime: up to 3h*
*1500mAh CR123A

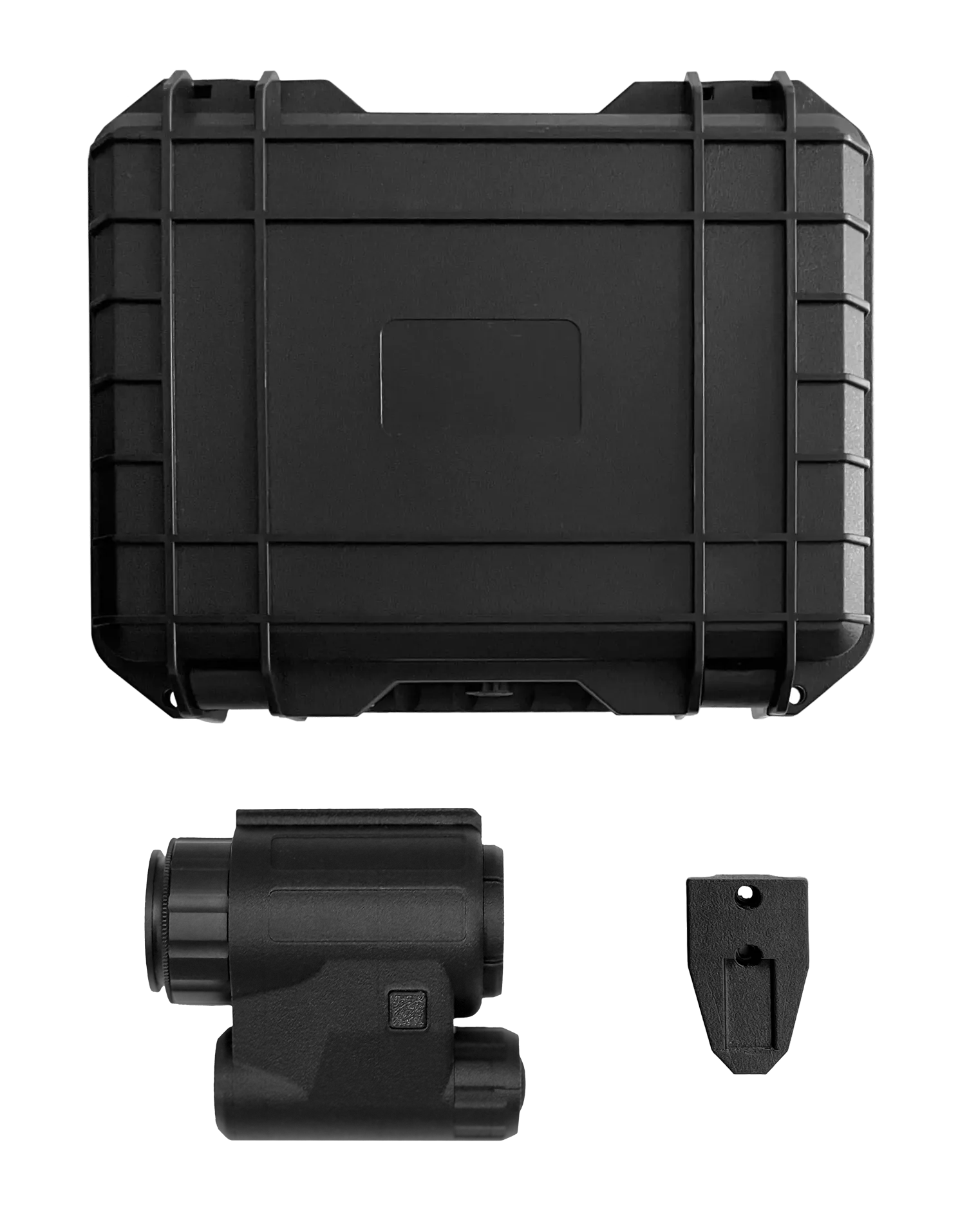

STANDARD EQUIPMENT
- Predator Micro
- NVG Shoe Mount
- Hardcase
- Eye Cup
- User Manual (Online)
AVAILABLE ACCESSORIES
We can make custom Adapters for your needs, contact us!
